Tank, Fuel: Installation: Installation

If fuel pump module is to be installed, install module to tank.
Place tank to a hydraulic jack and raise just enough to connect fuel pump module electrical connector.
Continue raising tank until snug to body.

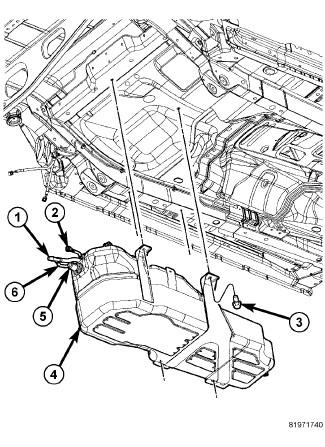

Fig 1: Removing/Installing Fuel Tank
Courtesy of CHRYSLER GROUP, LLC
Install tank mounting bolts (3) at both sides of tank. Tighten to 61 N.m (45 ft. lbs.).

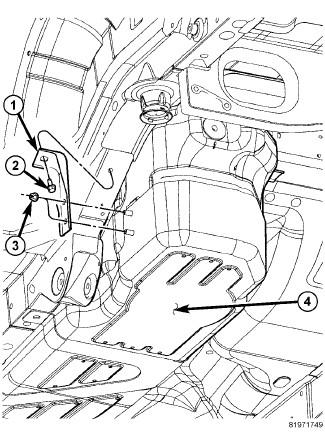

Fig 2: Tank Support Bracket, Bolt & Nuts
Courtesy of CHRYSLER GROUP, LLC
Tighten two nuts (3) at tank support bracket (1) to 61 N.m (45 ft. lbs.).
Install bolt (2). Tighten to 61 N.m (45 ft. lbs.).
Install rear propshaft.

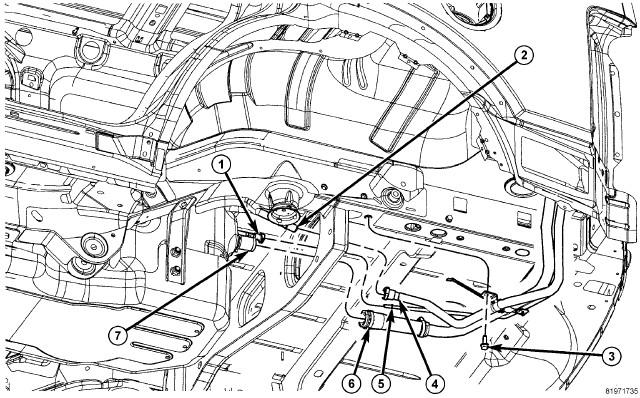

Fig 3: Disconnecting/Connecting Vapor Lines And AT Rear Of Tank & Fuel Fill Hose And Clamp AT Rear Of Tank
Courtesy of CHRYSLER GROUP, LLC
Connect vapor lines (4) and (5) at rear of tank.
Connect fuel fill hose and clamp (6) at rear of tank.

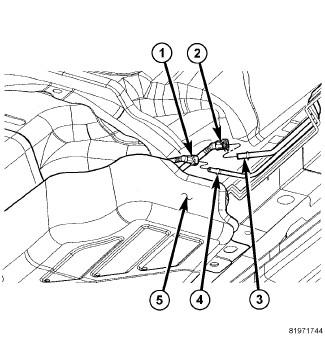

Fig 4: Disconnecting/Connecting Fuel Line Quick Connect Fittings And AT Front Of Fuel Tank
Courtesy of CHRYSLER GROUP, LLC
Connect fuel line quick connect fittings (1) and (2) at front of fuel tank (5).
Lower vehicle, fill tank with fuel and install fuel fill cap.
Check for fuel leaks.
