Pulley, Power Steering Pump: Installation: Diesel

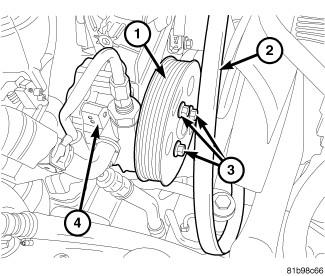

Fig 1: Pulley, Serpentine Drive Belt, Bolts & Pump

Courtesy of CHRYSLER GROUP, LLC

1. Install the pulley (1) to the pump shaft.
2. Install the three bolts (3) securing the pulley (1) to the pump (4). Tighten to 47 N.m (35 ft. lbs.).
3. Install the serpentine belt (2).
4. Install the air inlet tube.
5. Install the air cleaner box.
