Steering System: Pump: Installation: 3.7L

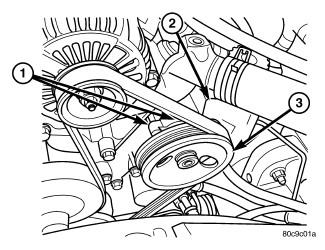

Fig 1: Power Steering Pump Mounting Bolts, Reservoir & Pulley

Courtesy of CHRYSLER GROUP, LLC

1 - MOUNTING BOLTS

2 - RESERVOIR

3 - STEEL PULLEY

1. Install the pump to the vehicle.
2. Install the three bolts (1) securing the pump to the engine. Tighten the bolts to 28 N.m (21 ft. lbs.). Refer to Fig 1.
3. Install the power steering hoses. Tighten to 27 N.m (20 ft.lbs.).
4. Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .
5. Refill the power steering fluid and check for leaks. Refer to STANDARD PROCEDURE .
