Steering System: Pump: Installation: 2.8L-Diesel

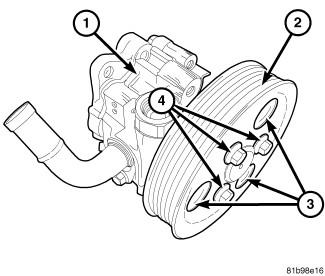

Fig 1: Pump, Bolts & Pulley Access Holes

Courtesy of CHRYSLER GROUP, LLC

1. Install the pump (1) to the vehicle.
2. Install the three bolts securing the pump (1) to the engine through the access holes (3) and tighten to 28 N.m (21 ft. lbs.).

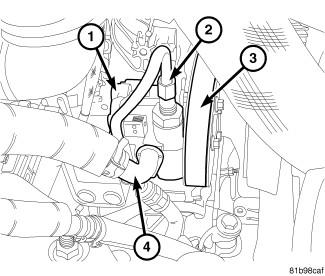

   Fig 2: Pump, Hoses, & Belt

   Courtesy of CHRYSLER GROUP, LLC
3. Install the pressure power steering hoses (2). Tighten to 31 N.m (23 ft. lbs.).
4. Reclamp the supply hose (4) to the pump (1).
5. Install the serpentine belt (3). Refer to BELT, SERPENTINE, INSTALLATION .
6. Install the air inlet tube.
7. Install the air cleaner housing.
8. Refill the power steering fluid and bleed the system. Refer to STANDARD PROCEDURE .
