P0533-A/C Pressure Sensor Circuit High: Notes

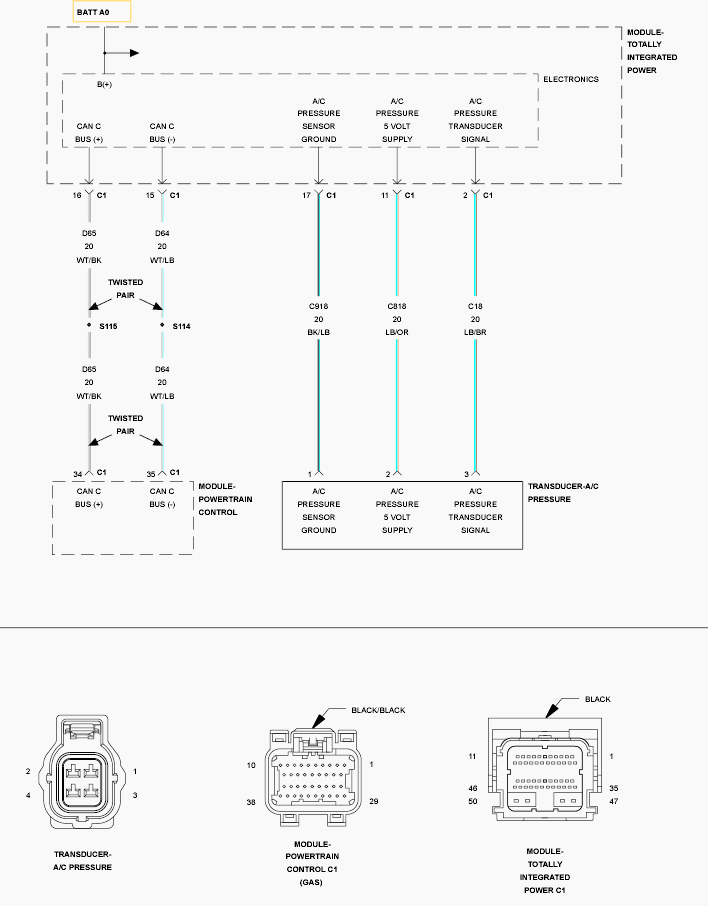

Fig 1: A/C Pressure Transducer Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
