Cooler, Power Steering: Installation: Installation

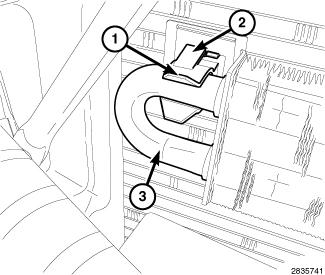

Fig 1: Two Cooler Retainer Clips, Base & Cooler Pipe

Courtesy of CHRYSLER GROUP, LLC

1. Position and install the power steering cooler (3) to the vehicle by pushing into the retaining clip (1).

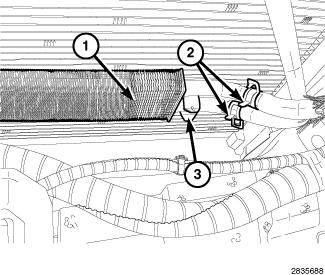

   Fig 2: Spring Clamps & Cooler

   Courtesy of CHRYSLER GROUP, LLC
2. Install both hoses and spring clamps (2) to the cooler (1).
3. Refill the power steering fluid and bleed the system. Refer to STANDARD PROCEDURE .
4. Start engine and check for leaks.
5. Install the grille. Refer to GRILLE, INSTALLATION .
