Engine Cooling System: Engine: Thermostat: Installation: 3.0L

Fig 1: Thermostat & Housing

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

The Thermostat and housing is serviced as an assembly. Do not remove the thermostat from the housing, damage to the thermostat may occur.

Install a new seal on to the thermostat housing.

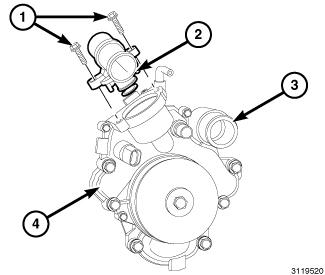

Fig 2: Water Pump, Thermostat Housing & Bolts
Courtesy of CHRYSLER GROUP, LLC
Position thermostat housing (2) onto the water pump.
Install two thermostat housing bolts (1). Tighten bolts to 11 N.m (97 in. lbs.).
Install upper radiator hose on thermostat housing (2).
Fill cooling system. Refer to STANDARD PROCEDURE .
Install the air intake system. Refer to BODY, AIR CLEANER, INSTALLATION or BODY, AIR CLEANER, INSTALLATION, 5.7L or BODY, AIR CLEANER, INSTALLATION .
Connect negative battery cable to battery.
Start and warm the engine. Check for leaks.
