U1416-00-Implausible Security Siren Signal Received: Notes

WARNING: This page is about a different car, the 2011 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

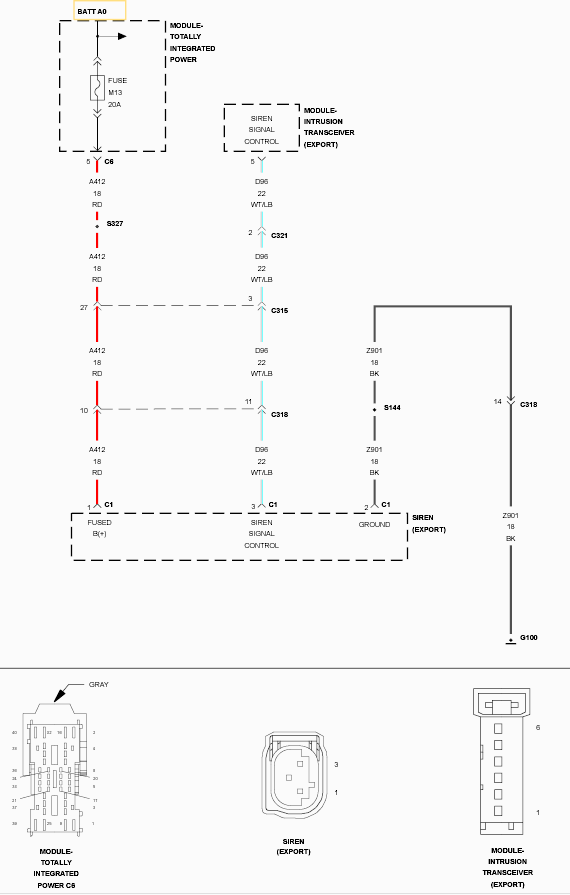

Fig 1: Intrusion Transceiver Module (ITM) Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
