5.7L / 6.4L

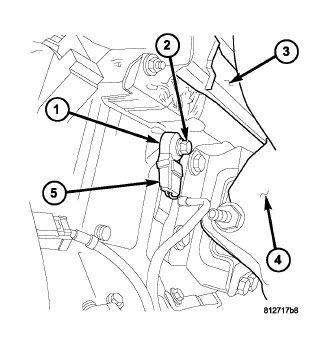

Fig 1: Knock Sensor & Electrical Connector

Courtesy of CHRYSLER GROUP, LLC

The 5.7L and 6.4L engines use two knock sensors (1) and are bolted to each side of the cylinder block (outside) under each exhaust manifold (3).
