Sensor, Camshaft Position: Installation: 5.7L/6.4L

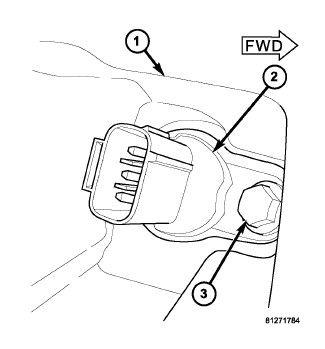

Fig 1: CMP Sensor Retaining Bolt & Sensor

Courtesy of CHRYSLER GROUP, LLC

Clean out the machined hole in the timing cover (1).
Install the CMP sensor (2) into the timing cover with a slight rocking motion. Do not twist the sensor into position as damage to O-ring may result.
CAUTION:
Before tightening the CMP sensor retaining bolt, be sure the sensor is completely flush to the timing cover. If the sensor is not flush, damage to the sensor mounting tang may result.
Install the CMP sensor retaining bolt (3) and tighten to 12 N.m (9 ft. lbs.).

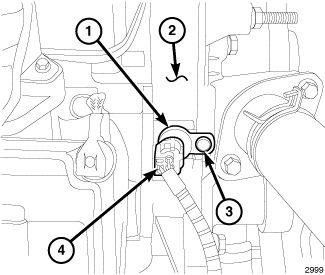

Fig 2: Camshaft Position Sensor, Connector, Bolt & Timing Cover
Courtesy of CHRYSLER GROUP, LLC
Connect the electrical connector (4) to the CMP sensor (1).
Install the air cleaner and resonator assembly. Refer to BODY, AIR CLEANER, INSTALLATION, 5.7L or BODY, AIR CLEANER, INSTALLATION .
