Coil, Ignition: Installation: 5.7L/6.4L

Fig 1: Removing/Installing Ignition Coil

Courtesy of CHRYSLER GROUP, LLC

Using compressed air, blow out any dirt or contaminants from around the top of the spark plug.
NOTE:
Use dielectric grease on each of the spark plug boots before installing the coil.
Position the ignition coil(s) (1) into the valve cover and push onto the spark plug(s).

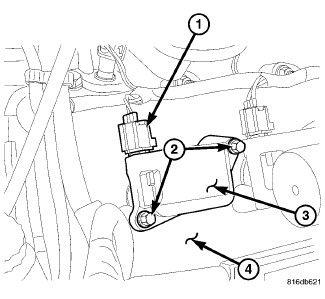

Fig 2: Ignition Coil, Connector & Mounting Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the ignition coil retaining bolts (2) and tighten to 7 N.m (62 in. lbs.).
Connect the electrical connector (1) to the ignition coil(s).
Install the engine cover.
