Sensor, Air Temperature, Intake: Installation: 5.7L

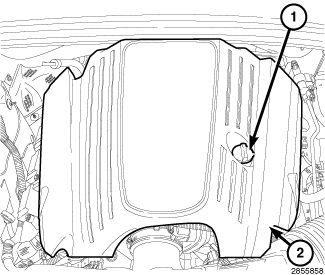

Fig 1: Identifying IAT Sensor - 5.7L

Courtesy of CHRYSLER GROUP, LLC

1. Check the condition of the Intake Air Temperature (IAT) sensor O-ring, replace if necessary.
2. Clean the IAT sensor (2) mounting hole in the air cleaner resonator.

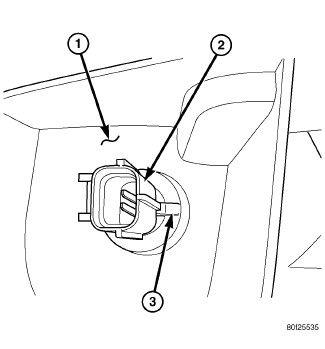

3. Position the IAT sensor into the air cleaner resonator (1), rotate clockwise about 1/4 turn until the release tab (3) locks into position.

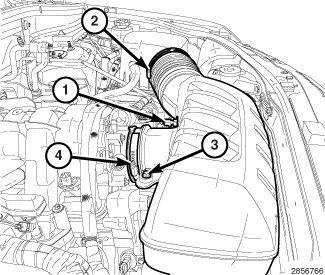

   Fig 2: Intake Air Temperature (IAT) Sensor, Air Cleaner Housing, Resonator Retaining Bolt & Hose Clamp

   Courtesy of CHRYSLER GROUP, LLC
4. Connect the electrical connector to the IAT sensor (1).
   Fig 3: Oil Fill Cap & Engine Cover

   Courtesy of CHRYSLER GROUP, LLC
5. Position the engine cover (2) and secure the retaining grommets to the ball studs.
6. Install the oil fill cap (1).
