Sensor, Air Temperature, Intake: Installation: 3.6L

Fig 1: View Of IAT Sensor Tab/O-Ring - 3.7l/4.7l/5.7l

Courtesy of CHRYSLER GROUP, LLC

1. The sensor mounted O-ring seal (2) can be reused if not damaged.
2. Clean the IAT sensor mounting hole in the air inlet hose.
3. Install the IAT sensor into the air inlet hose and rotate clockwise until the release tab (3) engages.

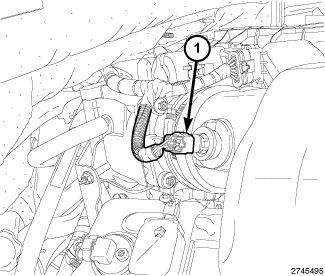

   Fig 2: Inlet Air Temperature Sensor Electrical Connector

   Courtesy of CHRYSLER GROUP, LLC
4. Install the electrical connector (1) to the IAT sensor.

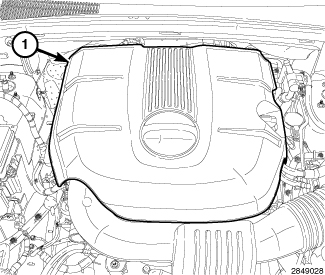

   Fig 3: Engine Cover

   Courtesy of CHRYSLER GROUP, LLC
5. Install the engine cover (1).
6. Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).
