Exhaust Temperature Sensor 1/1

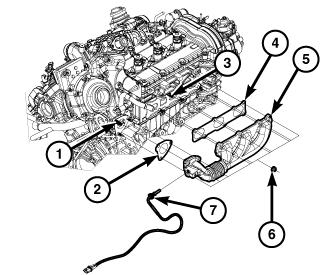

Fig 1: Exhaust Manifold, Gaskets, Turbocharger, Cylinder Head & Fasteners

Courtesy of CHRYSLER GROUP, LLC

Install the exhaust temperature sensor (7) and tighten to 45 N.m (33 ft. lbs.).

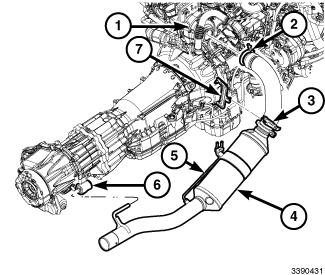

Fig 2: Diesel Particulate Filter Clamp
Courtesy of CHRYSLER GROUP, LLC
Align the Diesel Particulate Filter (DPF) pipe to the turbocharger. Tighten the clamp (2) to 25 N.m (18 ft. lbs.)

Fig 3: Oxygen Sensor Connector & Ball Stud Fastener
Courtesy of CHRYSLER GROUP, LLC
Connect the upstream exhaust temperature sensor wire harness connector.
Connect the oxygen sensor wire harness connector (1).

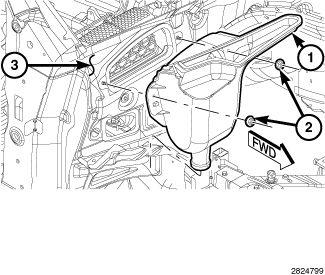

Fig 4: Two Nuts, Air Inlet Duct & Dash Panel
Courtesy of CHRYSLER GROUP, LLC
Install the HVAC air inlet housing (1) and securely tighten nuts.

Fig 5: Cowl Extension Silencer, Side Extensions & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Install the cowl extension silencer. Refer to SILENCER, COWL EXTENSION, INSTALLATION .

Fig 6: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
Connect the negative battery cable.
