B196A-00-Power Liftgate Close Direction OVERCURRENT: Notes

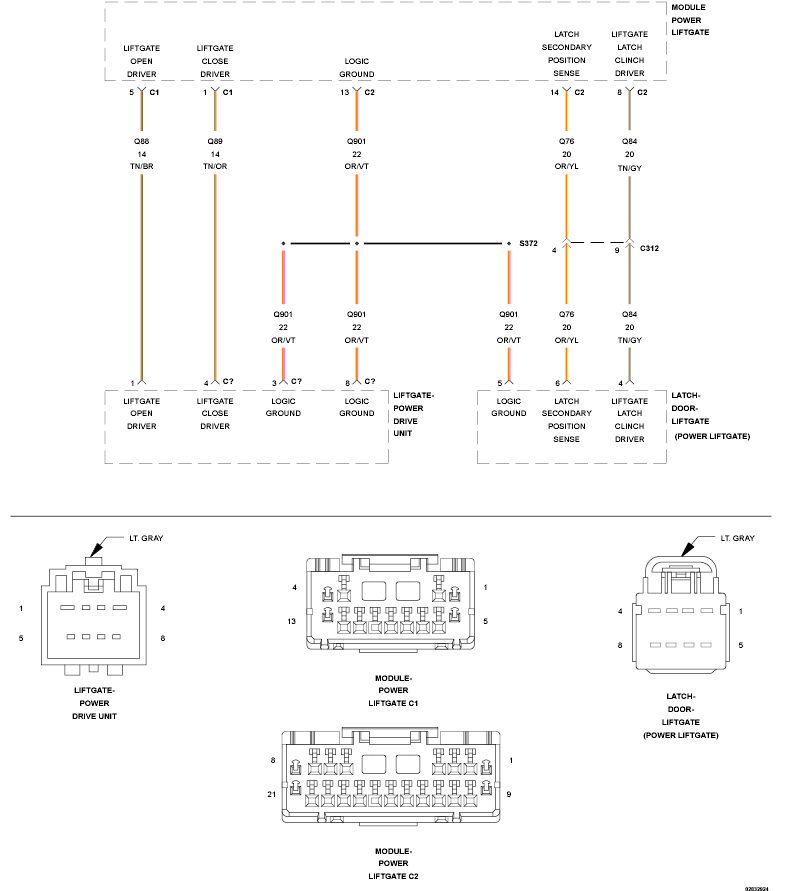

Fig 1: Power Liftgate Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
