Section 308 (Front Axle): Removal: Removal

WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

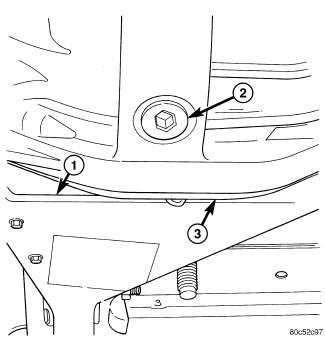

Fig 1: Drain Plug
GC0085743Courtesy of CHRYSLER GROUP, LLC
  1. With vehicle in neutral, position vehicle on hoist.
  2. Remove skid plate, if equipped.
  3. Remove differential housing (3) drain plug (2) and drain the fluid.
  4. Install the drain plug and torque to 34 N.m (25 ft. lbs.).

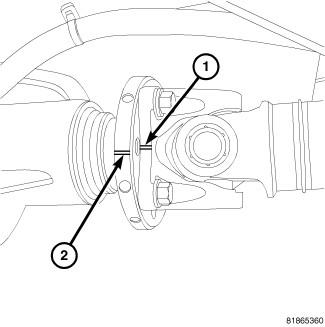

    Fig 2: Front Reference Mark
    GC0085718Courtesy of CHRYSLER GROUP, LLC
  5. Remove the wheel and tire assemblies.
  6. Mark front propeller shaft (1) and pinion flange (2) for installation reference. Remove propeller shaft from pinion flange.
    Fig 3: Identifying Hub Nut & Half Shaft
    GC0085729Courtesy of CHRYSLER GROUP, LLC
  7. Remove hub nuts (1) from half shafts (2).
    Fig 4: Identifying Stabilizer Bar Link & Bolts
    GC0085704Courtesy of CHRYSLER GROUP, LLC
  8. Remove stabilizer bar link (1) bolts (2) from lower control arm.
    Fig 5: Identifying Shocks Clevis & Nuts
    GC0085731Courtesy of CHRYSLER GROUP, LLC
  9. Remove the shock clevises. Refer to BRACKET, CLEVIS, REMOVAL .
    Fig 6: Identifying Tie Rod End & Steering Knuckle
    GC0085702Courtesy of CHRYSLER GROUP, LLC
  10. Remove tie rod end (1) nuts and separate ends from the steering knuckles (2).
    Fig 7: Identifying Upper Ball Joint Nuts & Steering Knuckles
    GC0085744Courtesy of CHRYSLER GROUP, LLC
  11. Remove both front brake calipers and hang with mechanics wire. Refer to CALIPER, DISC BRAKE, REMOVAL .
  12. Remove upper ball joint nuts (1) from steering knuckles (2) and separate ball joints from steering knuckles (2).
    Fig 8: Identifying Half Shaft & Knuckle
    GC0085732Courtesy of CHRYSLER GROUP, LLC
  13. Pull out on the steering knuckles (2) and push the half shaft (1) out of the knuckles.
  14. With a pry bar remove the RH half shaft (1) from the axle.
    Fig 9: Identifying Oil Filter Drain Tray & Vent Hose
    GC0085745Courtesy of CHRYSLER GROUP, LLC
  15. Remove oil filter drain tray (1) and vent hose (2) from differential cover.
    Fig 10: Identifying Front Axle Bracket Cradle Nut & Front Axle Bracket Bolts
    GC0085746Courtesy of CHRYSLER GROUP, LLC
  16. Support axle with a lift/jack.
  17. Loosen the front axle bracket nut and bolt (1) from crossmember. Remove front axle bracket nuts and bolts (2) from axle housing.
    Fig 11: Identifying Nut/Bolt & Right Axle
    GC0085747Courtesy of CHRYSLER GROUP, LLC
  18. Remove nut and bolt (1) from right axle (2) bracket.
    Fig 12: Identifying Bolts & Rear Axle Bracket
    GC0085748Courtesy of CHRYSLER GROUP, LLC
  19. Remove bolts (1) from rear axle bracket (2).

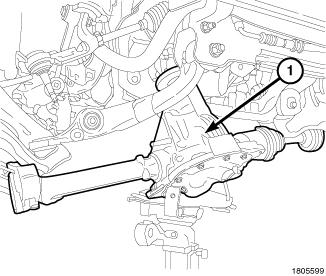

    Fig 13: Identifying Axle
    GC0100649Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    To remove the axle, tilt the cover side of the axle downward while maneuvering the front axle bracket out of the way. Then lower the axle and slide it to the RH side of the vehicle to clear the LH axle shaft

  20. Remove the axle (1) from the vehicle.
