Plug, Glow: Removal: Removal

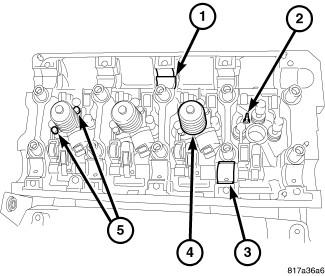

Fig 1: Glow Plugs

Courtesy of CHRYSLER GROUP, LLC

NOTE:

If replacing a one or more glow plugs that failed, check the glow plug relay control circuit (K202) for a short to voltage. Back probe circuit (K202) between the engine control module and the glow plug control module. Any reading higher than 9.8 volts with the key on would be considered a short to voltage.

Disconnect negative battery cable.
Remove engine cover. Refer to REMOVAL or REMOVAL .
Remove cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL or COVER(S), CYLINDER HEAD, REMOVAL .
Disconnect glow plug electrical connector.
Remove glow plugs (2) from cylinder head.
