Sensor, Exhaust Temperature: Installation: Installation

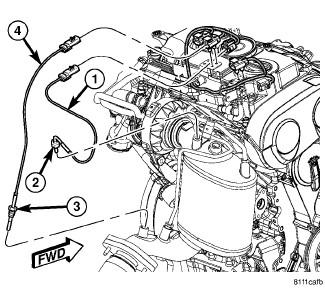

Fig 1: Exhaust Temperature Sensor - DPF

Courtesy of CHRYSLER GROUP, LLC

1 - UPSTREAM DPF TEMPERATURE SENSOR ELECTRICAL CONNECTOR

2 - UPSTREAM DPF TEMPERATURE SENSOR

3 - DOWNSTREAM DPF TEMPERATURE SENSOR ELECTRICAL CONNECTOR

4 - DOWNSTREAM DPF TEMPERATURE SENSOR

1. Position DPF downstream temperature sensor into DPF. Tighten to 25 N.m (221 in. lbs.).
2. Connect downstream temperature sensor electrical connector.
3. Position DPF upstream temperature sensor into DPF. Tighten to 25 N.m (221 in. lbs.).
4. Connect upstream temperature sensor electrical connector.
5. Install engine cover.
