Remote Radio Switch With Paddle Shift
WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

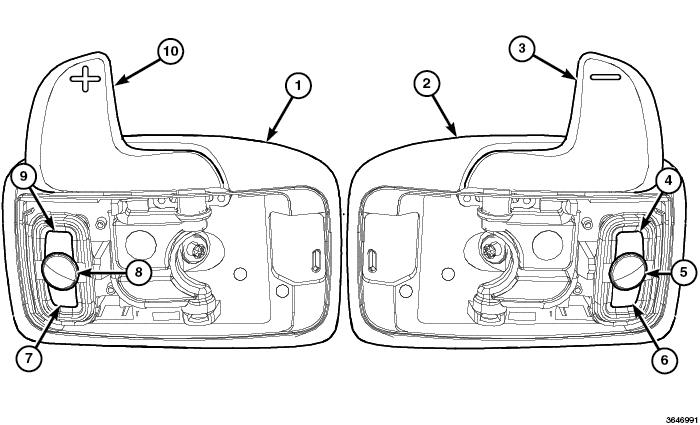

The remote radio switches are mounted to the back of the steering wheel. Each switch consists of a remote radio switch and a paddle shift switch.
The right switch (1) consists of the following functions:
- Upshift switch (paddle shift) (10)
- Volume "UP" (9)
- Mode (8)
- Volume "DOWN" (7)
The left switch (2) consists of the following functions:
- Downshift switch (paddle shift) (3)
- Seek "UP" (4)
- Preset (5)
- Seek "DOWN" (6)
For information on the operation of the remote radio and paddle shift switches. Refer to SWITCH, REMOTE RADIO, OPERATION .
