Seal, Pinion: Installation
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Using (special tool #9677, Installer, Seal) (1), install a NEW
pinion flange seal.

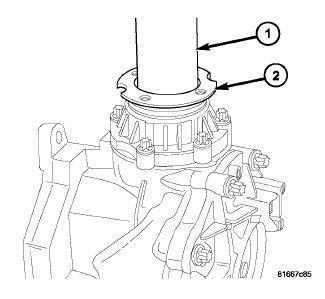

- Using Installer (special tool #L-4507, Installer, Bearing) (1), lightly tap
pinion flange (2) onto the shaft, just enough to start the flange nut by hand.

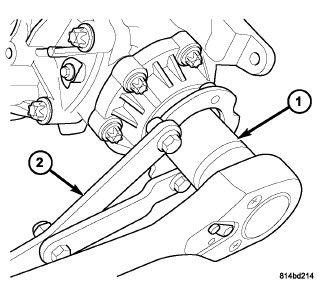

- Install Spanner Wrench (2) to pinion flange.
- Install the pinion flange nut and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
- Install the driveshaft and heat shield. Refer to INSTALLATION .
