Front Axle Disconnect (Fad) / Intermediate Shaft Assembly

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

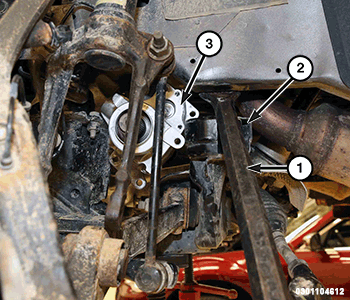

GC0177105Courtesy of CHRYSLER GROUP, LLC
  1. Using a large pry bar (1), carefully pry down the front cradle (2) approximately two inches, and install the Front Axle Disconnect (FAD) (3) in the vehicle.
    GC0095014Courtesy of CHRYSLER GROUP, LLC
  2. Install the FAD-to-oil pan bolts (1, 2, 3, 4) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0095014Courtesy of CHRYSLER GROUP, LLC
  3. Install the FAD actuator solenoid (8), and the 3 bolts (5, 6, 7) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0095015Courtesy of CHRYSLER GROUP, LLC
  4. Install the FAD bracket (4), the 3 bolts (1, 2, 3) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

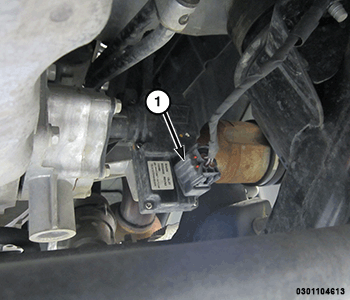

    GC0177139Courtesy of CHRYSLER GROUP, LLC
  5. Connect the FAD actuator solenoid wire harness connector (1).
  6. Install the left front halfshaft assembly. Refer to INSTALLATION .

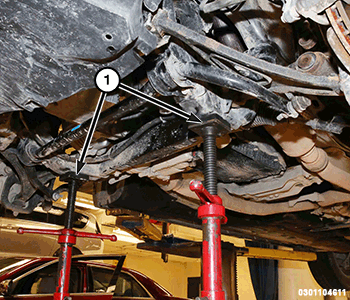

    GC0177119Courtesy of CHRYSLER GROUP, LLC
  7. Using the jack stands (1) raise the cradle enough to touch the frame.

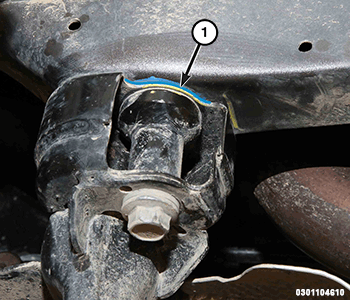

    GC0177116Courtesy of CHRYSLER GROUP, LLC
  8. Align the cradle by using the marks (1) made during removal.

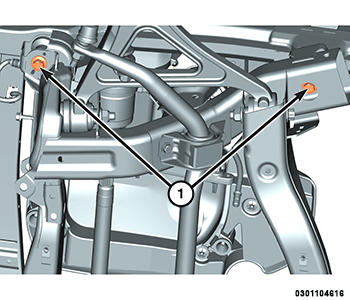

    GC0177126Courtesy of CHRYSLER GROUP, LLC
  9. Tighten the right hand front and rear cradle bolts (1) to the proper specification. Refer to FRAME, TECHNICAL SPECIFICATIONS .

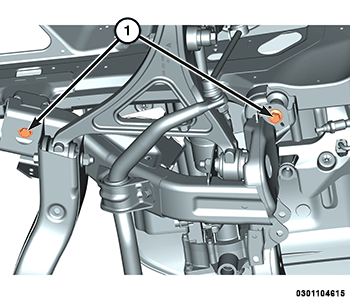

    GC0177121Courtesy of CHRYSLER GROUP, LLC
  10. Tighten the left hand front and rear cradle bolts (1) to the proper specification. Refer to FRAME, TECHNICAL SPECIFICATIONS .

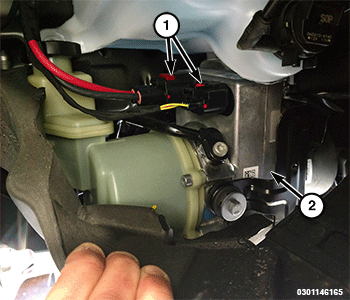

    GC0184072Courtesy of CHRYSLER GROUP, LLC
  11. Connect the electronic power steering pump (2) and the two wiring harness connectors (1)
  12. Install front passenger side wheelhouse splash shield. Refer to INSTALLATION .

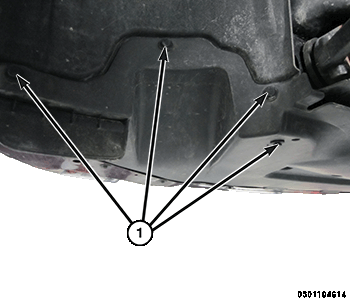

    GC0177120Courtesy of CHRYSLER GROUP, LLC
  13. Install the front belly pan fasteners (1), both sides.
  14. Remove the support and lower the vehicle.
  15. Verify the front end alignment is within specifications. Refer to WHEEL ALIGNMENT .
  16. Install the belly pan. Refer to BELLY PAN, INSTALLATION .
