Sensor, Park Assist: Removal: Front
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

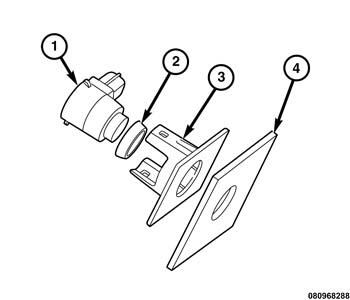

The park assist sensors (1) and the resilient sensor spacers (2) (also known as decoupling rings or O-rings) are each available for separate service replacement. The sensor brackets (3) are bonded to and integral to the inside surface of the bumper fascia (4).
- Disconnect and isolate the negative cable from the battery. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector before disconnecting the negative cable from the battery.
- Remove the Under Body Protection Belly Pan from the vehicle. Refer to BELLY PAN, REMOVAL .
- From behind the front bumper fascia (4), disconnect the wire harness connector from the park assist sensor (1) connector receptacle.
- Carefully pry the sensor bracket (3) latch features away from the latch tabs of the sensor far enough to disengage the sensor from the bracket.
- Disengage the resilient O-ring spacer (2) from around the circumference of the sensor membrane protrusion.
