Right Link
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Position the toe link to the knuckle and at the crossmember.

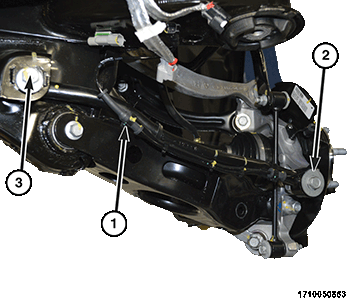

- Install the cam bolt at the crossmember (3).
- Install the toe link to knuckle bolt (2). Do not tighten bolt at this time.
- Attach the wheel speed sensor cable (1) to the toe link.
- Hold the toe adjustment cam stationary (cam facing upward). Install the cam washer and toe link nut (1). Do not tighten nut at this time.
- Raise the jack and position the shock absorber into the pocket in the spring link. Install the shock absorber lower bolt. Do not tighten at this time.
- Install the rear exhaust. Refer to MUFFLER, EXHAUST, INSTALLATION .
- Install the tire and wheel assembly. Refer to INSTALLATION .
- Remove the support and lower the vehicle.
- Position vehicle on alignment rack. Raise vehicle as necessary to access mounting bolts.

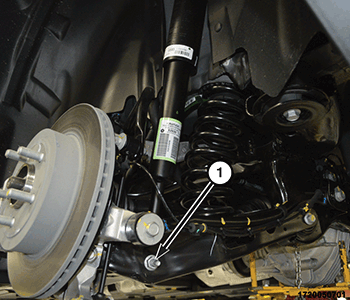

- Tighten the shock absorber lower bolt (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
- Tighten the toe link bolt at the knuckle to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
- Perform wheel alignment. Refer to WHEEL ALIGNMENT .

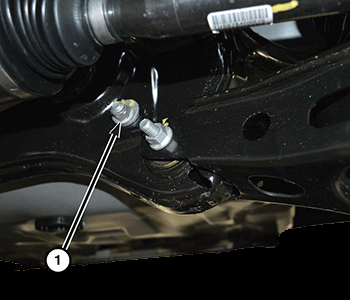

- Tighten the toe link bolt at the crossmember after the rear wheel alignment toe is set. Tighten the toe link nut (do not tighten at the bolt head) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
