Bushing, Front: Installation
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

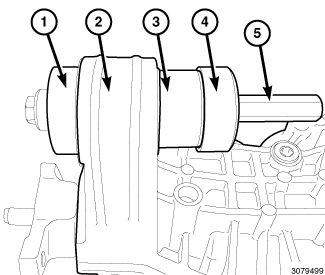

195RIA axle bushing shown in illustration. 230RIA axle bushing uses the same procedure.
- Install a NEW bushing (3) in the axle (2) with Installer (special tool #C-4190, Installer, Bearing) (4), Installer (special tool #8320, Installer, Bearing) (1), Remover/Installer (special tool #9948, Remover/Installer, Bushing), and Special Long Nut (special tool #9948-3, Nut, Special) (5).
- Install the axle in the vehicle. Refer to INSTALLATION .
