Manifold, Intake: Description
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
If the engine has experienced a catastrophic failure, THE INTAKE MANIFOLD MUST BE REPLACED!

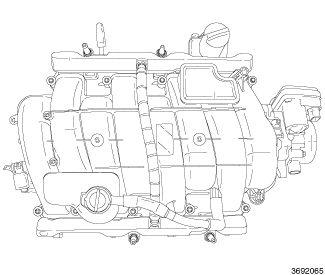

The intake manifold is made of a composite material with the runners tuned to give the best balance of power and torque. The manifold uses a single plane sealing system and separate Positive Crankcase Ventilation (PCV) port seals to prevent leaks. The screws connecting the manifold to the head use a thread lock patch, and must be replaced when the manifold is serviced.
