Shield, Underbody: Installation
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Right side shown in illustration, left side typical.

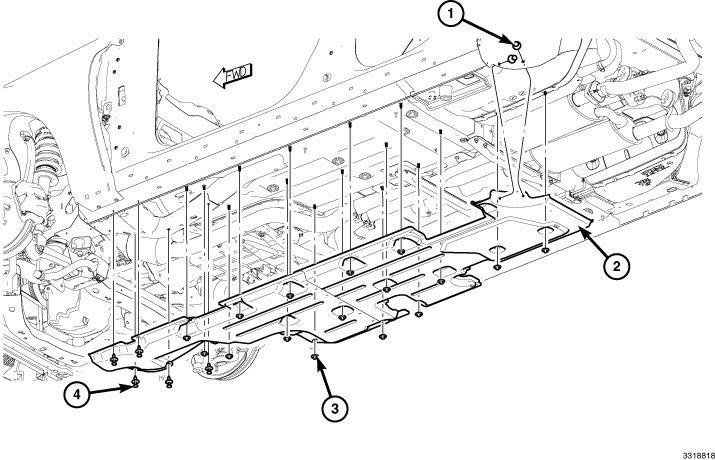

- Position the underbody shield (1) to the vehicle.
- Install the sixteen retaining nuts (3) that secure the underbody shield (1) to the vehicle underbody. Tighten the nuts securely.
- Install the five fasteners (4) located near the front of the shield that secure the underbody shield (2) to the vehicle.

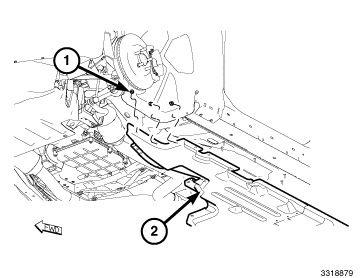

- Install the two fasteners (1) that secure the underbody shield (1) to the rear wheelhouse splash shield.
- Install the three fasteners (1) that secure the underbody shield (2) to the front wheelhouse splash shield. Tighten the fasteners securely.
- Lower the vehicle.
