Isolator, Rear CROSSMEMBER, Rear Mount: Installation
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
It is very important that bushing be installed in same position as original to maintain vehicle ride quality and bushing longevity. That is why bushing, once installed, needs to closely match reference marks applied upon removal of original bushing.
- Position bushing on crossmember bushing bore aligning bushing can flange (3) with reference marks applied during removal.

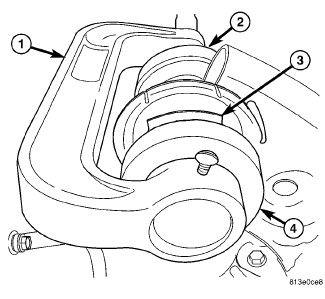

- Assemble tools (See following list) over bushing (3) and crossmember as shown in illustration.
- (1) Press (special tool #C-4212F, Press, Ball Joint)
- (2) Receiver (special tool #9031-3, Receiver, Bushing)
- (4) Installer (special tool #9031-4, Installer, Bushing)
- Tighten Press (1) screw-drive, pressing bushing into crossmember. Install bushing until bushing can flange contacts surface of crossmember.
- Remove tools.
- Install the rear crossmember. Refer to CROSSMEMBER, TRANSMISSION, INSTALLATION .
