Isolator, Rear CROSSMEMBER, Differential: Removal
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear crossmember. Refer to CROSSMEMBER, TRANSMISSION, REMOVAL .
- Remove bolts (1) from bushing prior to removal.NOTE:
Prior to using Special Tool (special tool #9520, Remover/Installer, Bushing), lubricate Bolt (1) threads to provide ease of use and promote tool longevity.
NOTE:When installing Thrust Bearing (6), be sure to place hardened side toward Bolt head.

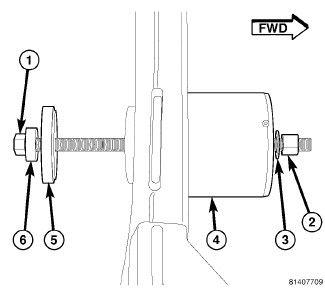

- Assemble tools (See following list) over bushing as shown.
- (1) Bolt
- (2) Nut
- (3) Washer
- (4) Receiver (special tool #9520-4, Cup, Receiver)
- (5) Remover (special tool #9520-3, Remover, Bushing)
- (6) Thrust Bearing
- While holding Nut (2) from rotating, using hand tools , tighten Bolt (1) until Remover (5) comes in contact with bushing and Receiver (4) sets squarely against crossmember.
- Continue to tighten Bolt (1), pressing bushing out of crossmember.
- Remove tools with bushing.
