Switch, Fuel Door: Installation
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

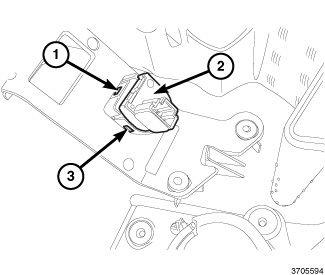

- Align the fuel door release switch (2) with the receptacle integral to the reinforcement on the back side of the driver side front door trim panel.
- Using hand pressure, push the switch into the receptacle until each of the switch latch tabs (1 and 3) are fully engaged.
- Reinstall the trim panel onto the inside of the driver side front door. Refer to PANEL, DOOR TRIM, INSTALLATION .
- Reconnect the battery negative cable.
