Insulator, Engine Mount, Rear: Removal: AWD
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

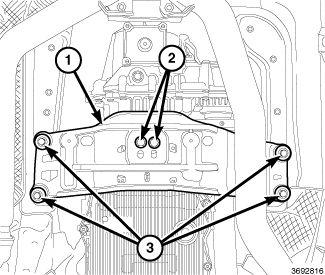

- Remove the two bolts (2) from the rear engine mount isolator.
- Using a suitable jack stand and a block of wood positioned under the transfer case, raise the transmission until the weight is removed from the isolator (approximately 5 mm).
- Remove four bolts (3) and the crossmember (1).

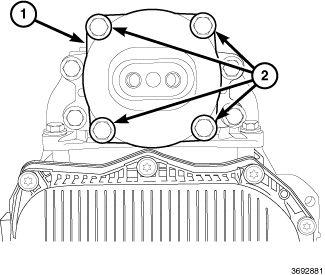

- Remove four bolts (2) and the rear engine mount isolator (1).

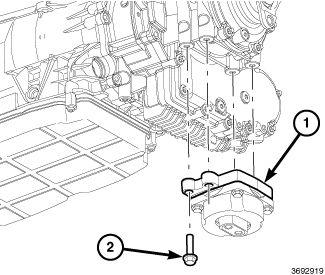

- If required, remove four bolts (2) and the rear engine mount bracket (1).
