Resonator, Air Cleaner: Installation
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Install the air cleaner resonator to the throttle body inlet and air cleaner cover, securing the resonator to the ball stud.

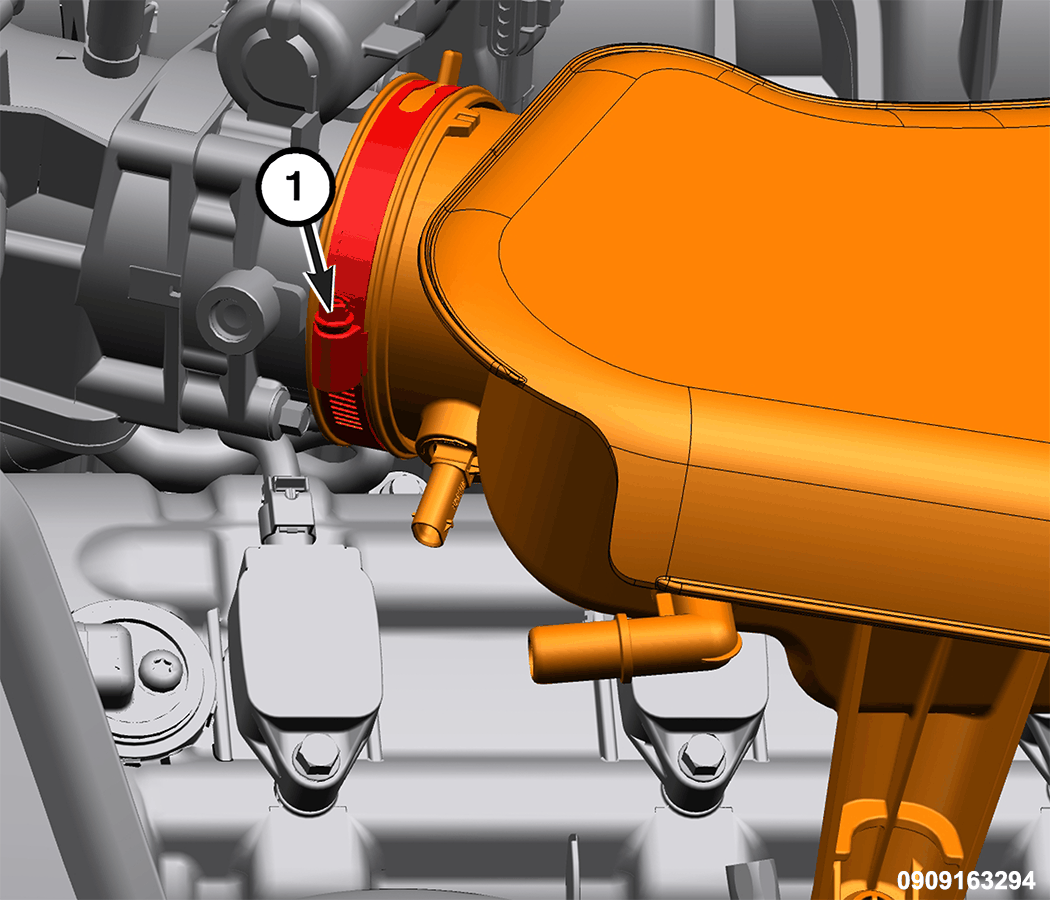

- Tighten the air cleaner resonator to throttle body clamp (1) to the proper specification. Refer to TORQUE SPECIFICATIONS
.

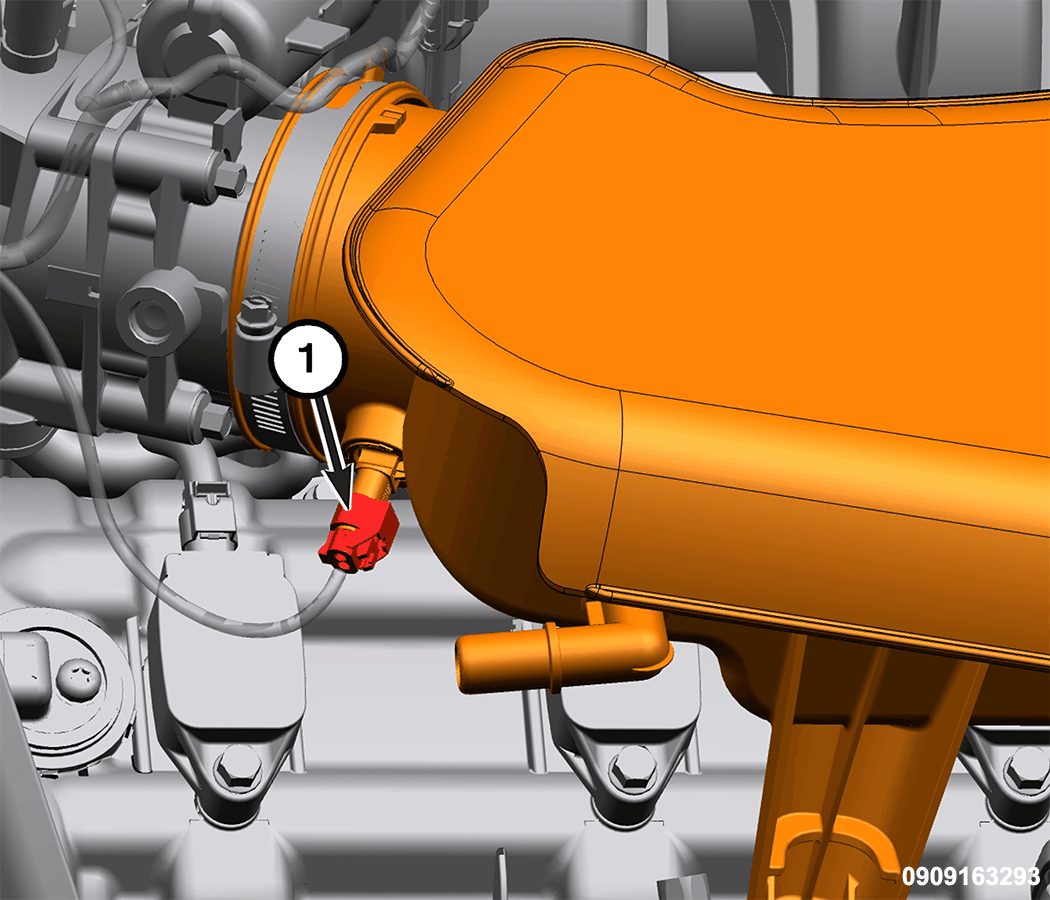

- Connect the wire harness connector (1) to the Inlet Air Temperature (IAT) sensor.

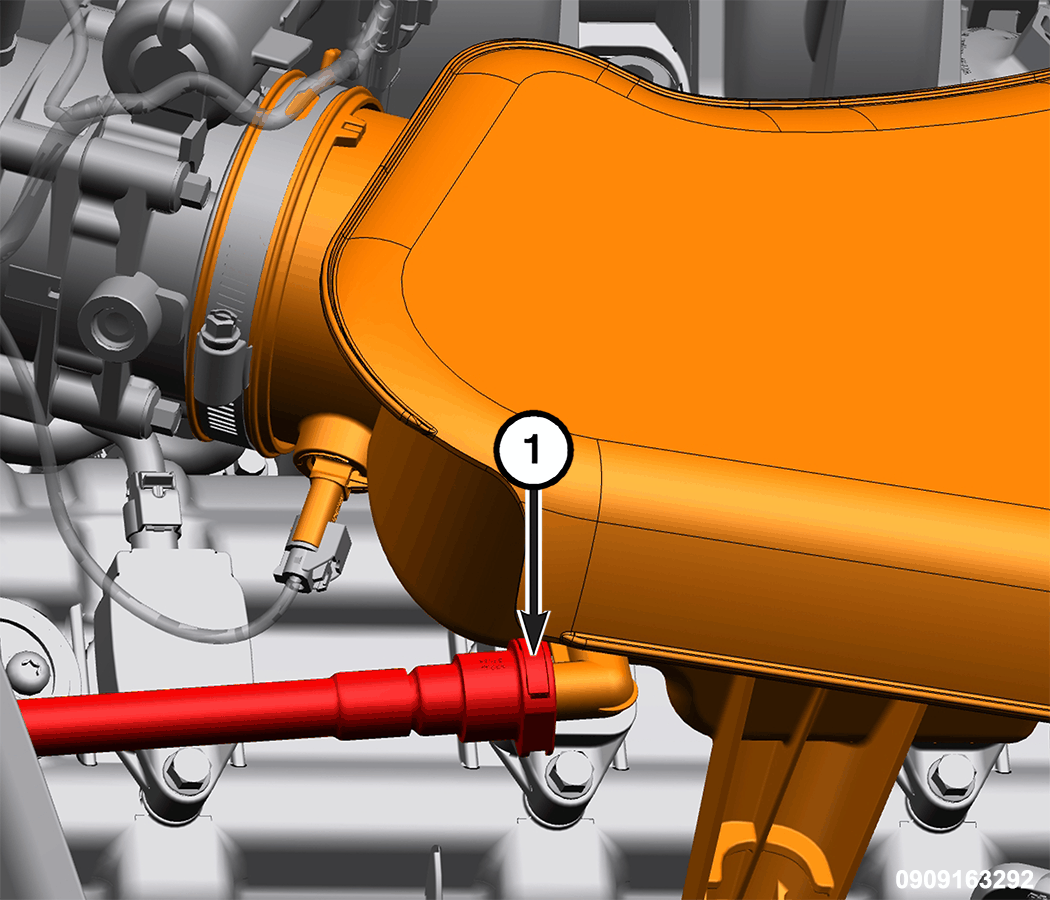

- Install the make-up air hose (1) to the air cleaner resonator.

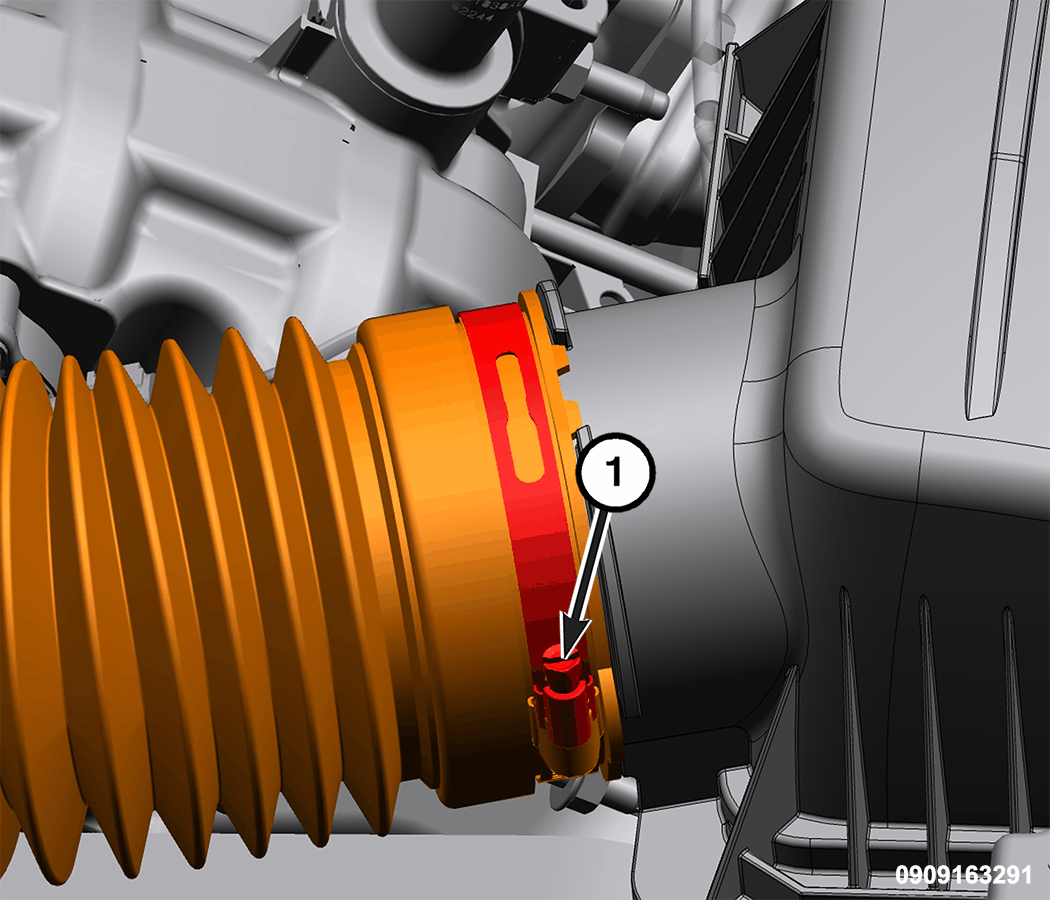

- Tighten the air cleaner inlet tube to air cleaner cover clamp (1) to the proper specification. Refer to TORQUE SPECIFICATIONS .
- Install the engine cover.
- Connect the negative battery cable.
