Sensor, Active Damping: Installation: Rear
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Installation process is the same for both sides of the vehicle.

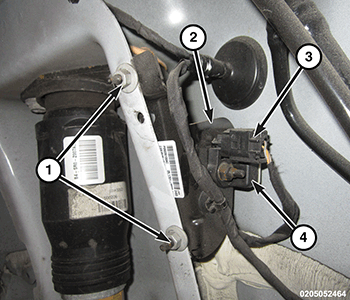

- Install the bracket (2) and place the studs through the holes in the rear shock tower.
- Install the rear Active Damping System (ADS) sensor nuts (1) and tighten to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
- Connect the wiring harness connector (3) to the ADS sensor (4) and seat the terminal locking tab.
