Switch, Brake Fluid Level: Installation
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

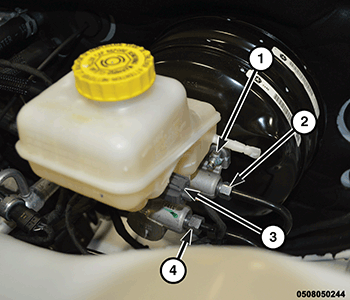

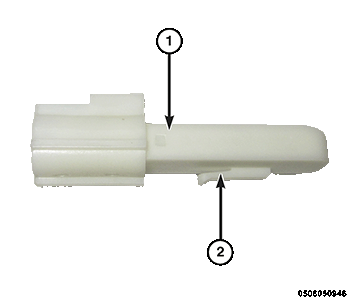

- Install the brake fluid level sensor (1) into the fluid reservoir until the retaining clip (2) has clicked into place.
- Reconnect the brake fluid level sensor wire harness connector (3).
- Install the windshield wiper cowl. Refer to COVER, COWL PANEL, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
