Sensor, Fuel Tank Pressure: Installation
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- The fuel tank pressure sensor seal (1) can be reused if not damaged.

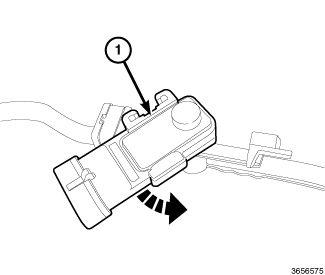

- Install the fuel tank pressure sensor (1) into the fuel tank vent tube and rotate until it locks into position.
- Connect the fuel filler tube vent line (3) at the filler tube (4) and the fuel tank vent steel line (6).
- Connect the fuel pressure electrical connector (1).
- Install the rear wheelhouse splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
