Subwoofer - Trunk
WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

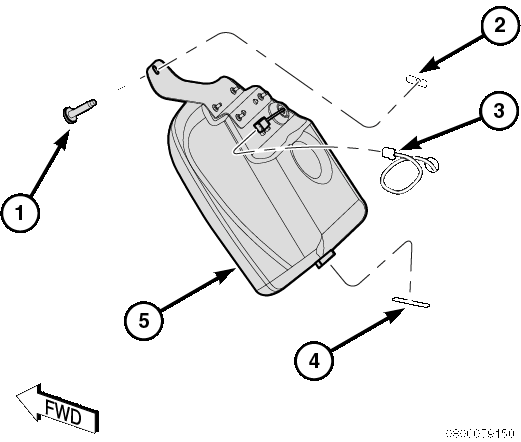

- Position the subwoofer assembly (5) into the trunk.
- Align and engage the locating tab on the base of the subwoofer enclosure with the slotted bracket (4) on the right side floor panel of the trunk.
- Pull the top bracket of the subwoofer assembly back from the trunk side panel far enough to access and reconnect the body wire harness connector (3) to the connector receptacle on the back of the subwoofer enclosure.
- Install and tighten the hold down retainer (1) that secures the top bracket of the subwoofer assembly to the U-nut (2) in the right trunk side panel.
- Reconnect the negative cable to the battery. If equipped with an Intelligent Battery Sensor (IBS), reconnect the IBS connector.
