Shelf Panel

WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

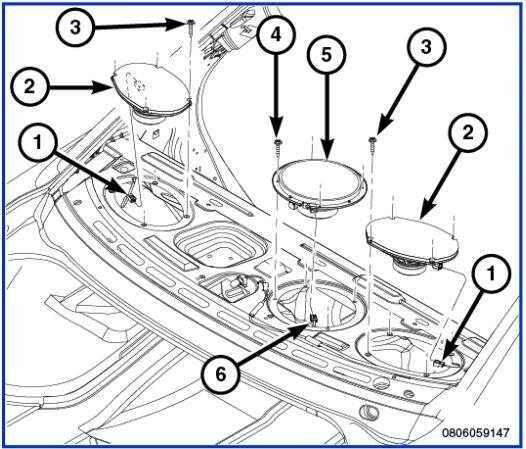

Fig 1: Except With Beats By Dre

Courtesy of CHRYSLER GROUP, LLC

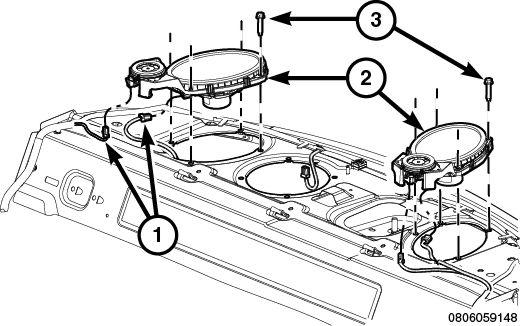

Fig 2: With Beats By Dre

Courtesy of CHRYSLER GROUP, LLC

Position the speaker (2) near the mounting hole in the package shelf panel support.
Reconnect the wire harness connector (1) to the speaker.
Position the speaker into the mounting hole of the shelf panel support.
Install and tighten the four screws (3) that secure the speaker to the shelf panel support. Tighten the screws securely.
Reinstall the trim onto the shelf panel support. Refer to PANEL, REAR SHELF, INSTALLATION .
Reconnect the negative cable to the battery. If equipped with an Intelligent Battery Sensor (IBS), reconnect the IBS connector.
