Instrument Panel

WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

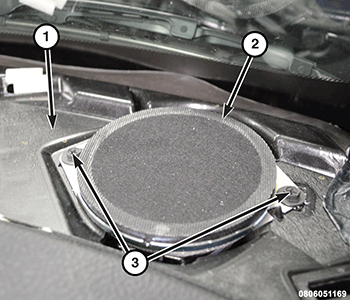

Fig 1: Instrument Panel Support Structure, Speaker & Screws
GC0170256Courtesy of CHRYSLER GROUP, LLC
  1. Position the speaker (2) near the mounting hole in the top of the instrument panel structural support (1).
  2. Reconnect the wire harness connector to the speaker and position it into the mounting hole of the instrument panel.
  3. Install and tighten the two screws (3) that secure the speaker to the instrument panel structural support. Tighten the screws securely.
  4. Reinstall the defroster grille onto the top of the instrument panel. Refer to GRILLE, DEFROSTER, INSTALLATION .
  5. Reconnect the negative cable to the battery. If equipped with an Intelligent Battery Sensor (IBS), reconnect the IBS connector.
