Premium II
WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

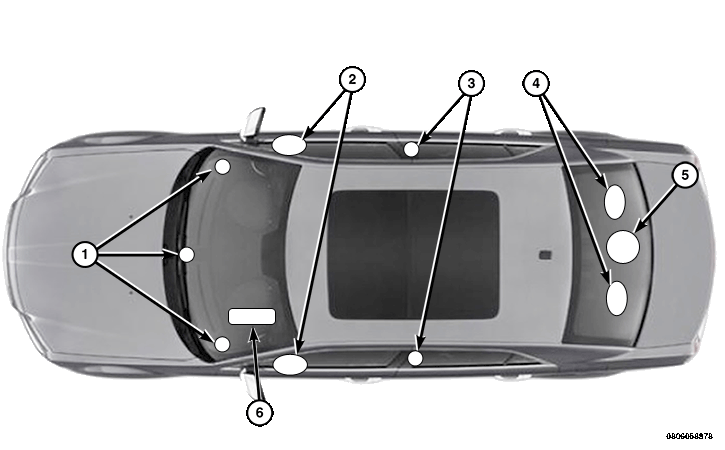

The Premium II speaker system (Sales Code RC3) includes nine speakers in nine locations, a dual voice coil subwoofer and an audio power amplifier.
- Five 8.89 centimeter (3.5 inch) diameter midrange tweeters located on the top of the instrument panel (1) and on the rear inner door panels (3). One is at each outboard end and one in the center of the instrument panel, and one is at the upper front corner of each rear door trim panel.
- Two 15.2 X 23 centimeter (6 X 9 inch) diameter speakers (2) located on the front inner door panels, one at the lower front corner of each front door.
- Two 15.2 X 23 centimeter (6 X 9 inch) diameter speakers (4) located on the package shelf, one at each outboard end.
- One 20.32 centimeter (8 inch) diameter Dual Voice Coil (DVC) subwoofer (5) located on the package shelf, near the center.
- A 12 channel, 506 watt amplifier (6) is located under the instrument panel to the left of the steering column. Refer to AMPLIFIER, DESCRIPTION .
The speakers and subwoofer cannot be adjusted or repaired. If ineffective or damaged they must be replaced.
