Diagnostic Test

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

TEST FOR INTERMITTENT CONDITION
NOTE:
Check for any TSB(s) related to the condition. If a TSB applies, perform the procedure outlined in the TSB before continuing.
1. Turn the ignition on.
  NOTE:
  Make sure the battery voltage is between 10.0 and 16.0 volts.
2. With the scan tool, read the module status.
  NOTE:
  Check the BCM for any active CAN hardware DTCs, perform DTC before proceeding.

  Does the scan tool indicate that the module is active on the bus?

  Yes
  - The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Go To 2.
CHECK THE (A901) AND (A902) FUSED B(+) CIRCUIT FOR AN OPEN OR SHORT CIRCUIT

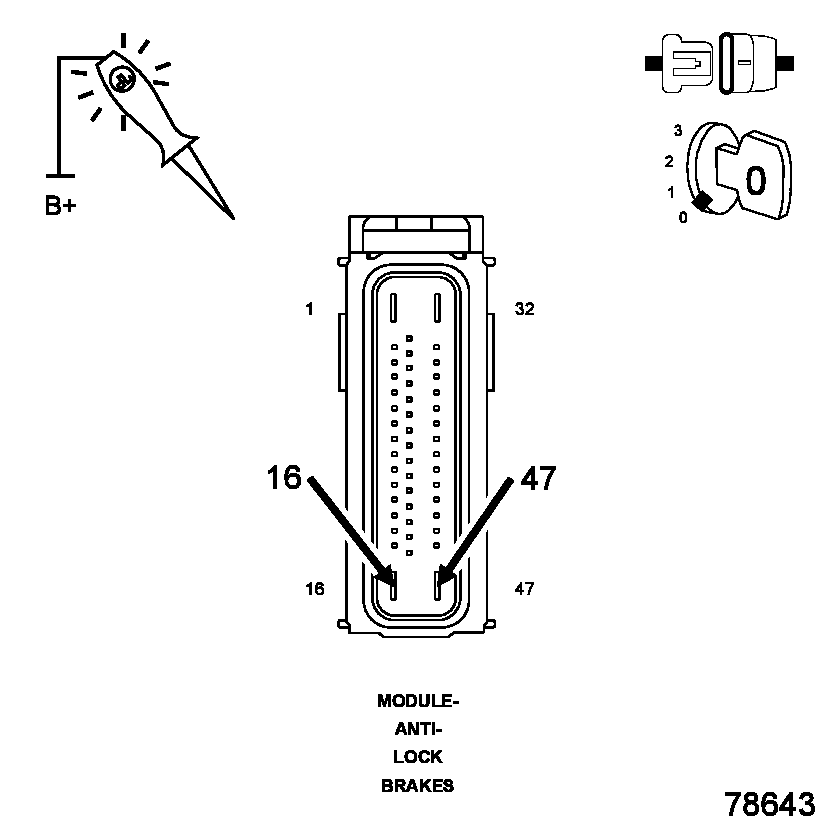

Fig 1: Checking Fused B(+) Circuit For Open Or Short
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Antilock Brake Module harness connector.
3. Using a 12-volt test light connected to ground, check the (A901) and (A902) Fused B(+) circuits.
  Does the test light illuminate brightly for each circuit?

  Yes
  - Go To 3.
  No
  - Repair the open or short in the Fused B(+) circuit.
  - Perform the ABS VERIFICATION TEST. Refer to ABS VERIFICATION TEST .
CHECK THE (Z802) GROUND CIRCUIT FOR AN OPEN

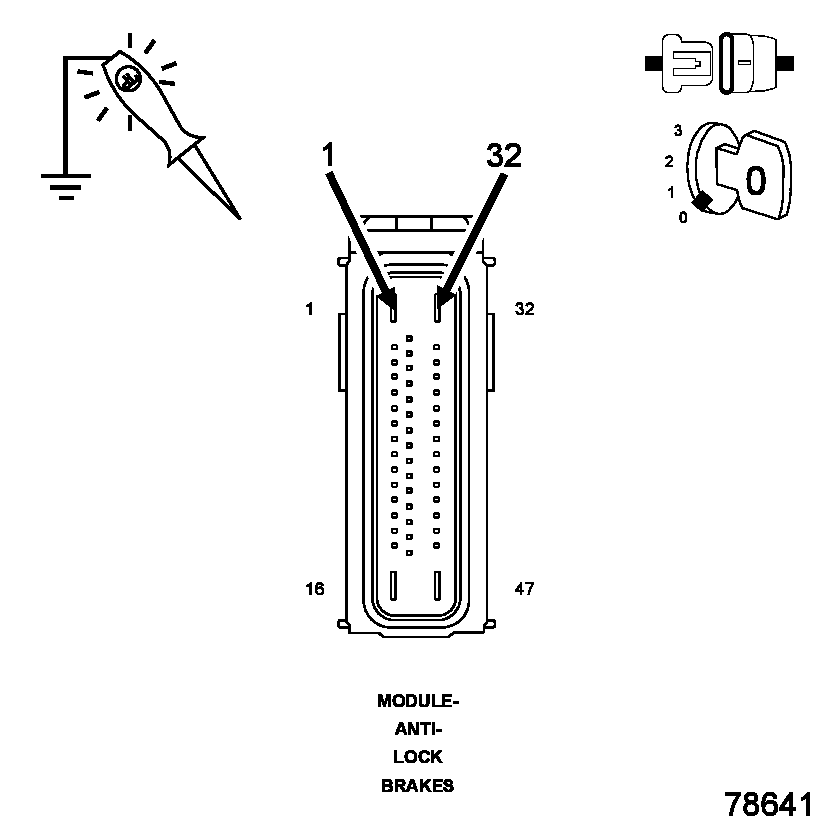

Fig 2: Checking Ground Circuit For Open
Courtesy of CHRYSLER GROUP, LLC
1. Using a 12-volt test light connected to 12-volts, check the (Z802) Ground circuits.
  Does the test light illuminate brightly for each circuit?

  Yes
  - Go To 4.
  No
  - Repair the open in the (Z802) Ground circuit.
  - Perform the ABS VERIFICATION TEST. Refer to ABS VERIFICATION TEST .
CHECK THE (F941) FUSED RUN/START RELAY OUTPUT CIRCUIT FOR AN OPEN OR SHORT CIRCUIT

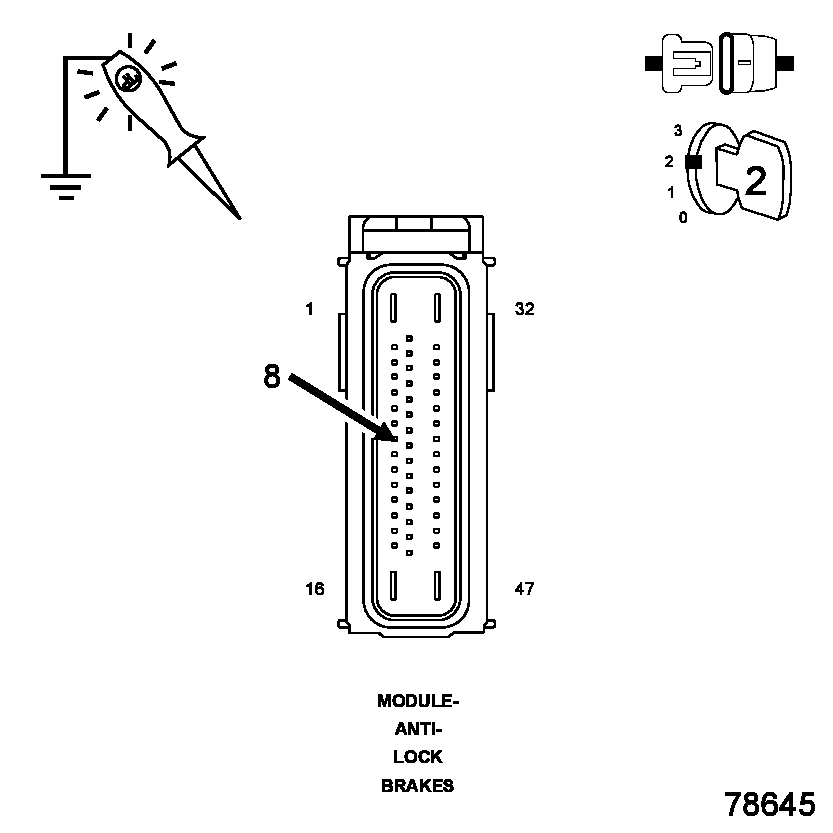

Fig 3: Checking Fused Run/Relay Output Circuit For Open Or Short
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition on.
2. Using a 12-volt test light connected to ground, check the (F941) Fused Run/Start Relay Output circuit.
  Does the test light illuminate brightly?

  Yes
  - Go To 5.
  No
  - Repair the open or short in the (F941) Fused Run/Start Relay Output circuit.
  - Perform the ABS VERIFICATION TEST. Refer to ABS VERIFICATION TEST .
CHECK THE (D65) CAN C BUS (+) OR (D64) CAN C BUS (-) CIRCUIT FOR AN OPEN

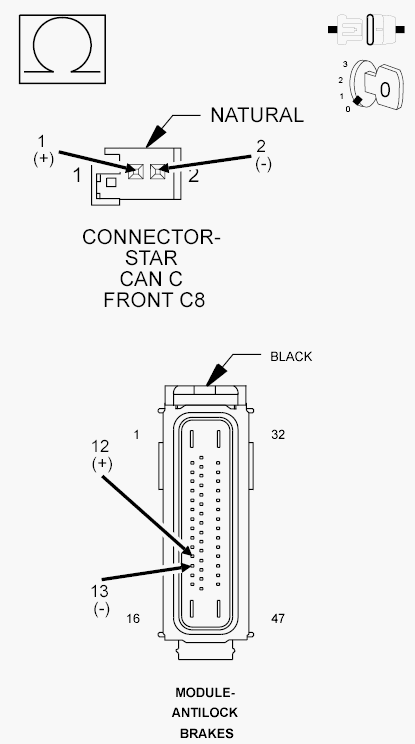

Fig 4: Checking The CAN C BUS (+) Or CAN C BUS (-) Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Front CAN C Star Connector C8 harness connector.
3. Measure the resistance of the (D65) CAN C Bus (+) circuit between the Front CAN C Star Connector C8 harness connector and the Antilock Brake Module harness connector.
4. Measure the resistance of the (D64) CAN C Bus (-) circuit between the Front CAN C Star Connector C8 harness connector and the Antilock Brake Module harness connector.
  Are the resistances below 5.0 Ohms?

  Yes
  - Replace the Antilock Brake System Module in accordance with the Service Information. Refer to MODULE, ANTI-LOCK BRAKE SYSTEM, REMOVAL .
  - Perform the ABS VERIFICATION TEST. Refer to ABS VERIFICATION TEST .
  No
  - Repair the open in the (D65) CAN C Bus (+) or (D64) CAN C Bus (-) circuit.
  - Perform the ABS VERIFICATION TEST. Refer to ABS VERIFICATION TEST .
