Section 97 (Audio And Video (Service Information)): Speaker: Description: Base
WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

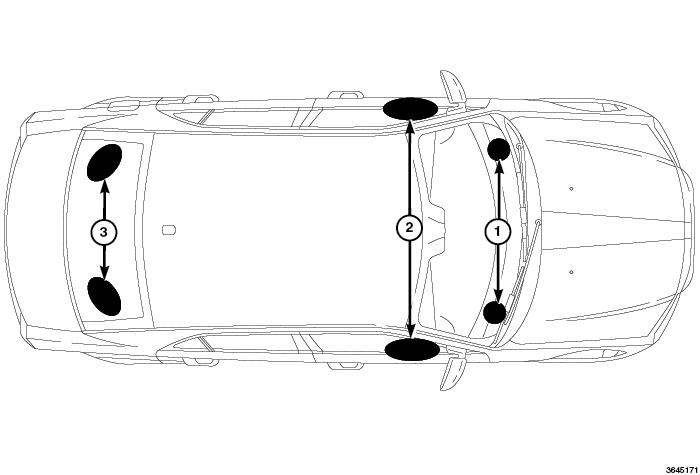

The base speaker system includes six speakers.
- Two 8.89 centimeter (3.5 inch) diameter midrange tweeters located in the instrument panel (1).
- Two 15.2 X 23 centimeter (6 X 9 inch) diameter speaker located in each front door (2).
- Two 15.2 X 23 centimeter (6 X 9 inch) diameter speaker located on each side of the rear shelf (3).
