Switch-Bank And Bezel Assembly

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

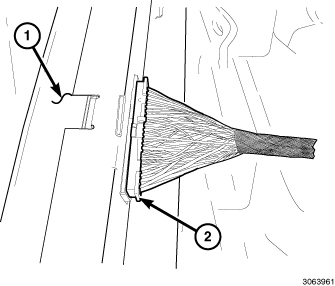

Fig 1: Switch-Bank Panel & Electrical Connector
GC0144633Courtesy of CHRYSLER GROUP, LLC
  1. Position the switch-bank assembly in place.
  2. Connect the electrical connector (2) to the back of the switch-bank assembly (1).

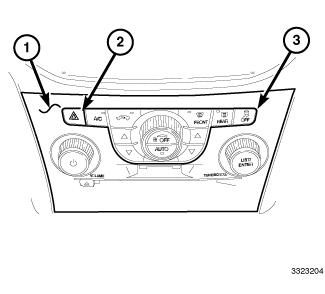

    Fig 2: Guide Pins & Switch-Bank Panel
    GC0144858Courtesy of CHRYSLER GROUP, LLC
  3. Position the switch-bank panel (1) in the IP and press firmly to engage the clips, securing the switch-bank to the IP.
  4. Connect the negative battery cable.
