Case Assembly, Differential: Disassembly: Disassembly

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

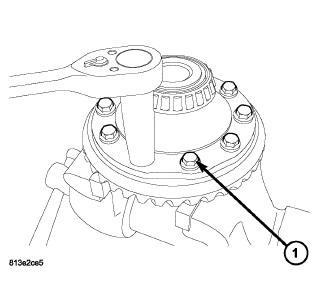

Fig 1: Ring Gear Bolts

Courtesy of CHRYSLER GROUP, LLC

Remove differential ring gear-to-case bolts (1).

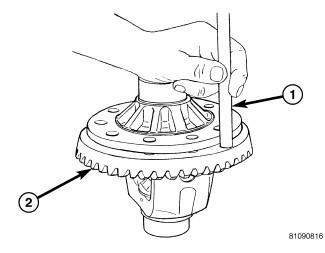

Fig 2: Removing Ring Gear
Courtesy of CHRYSLER GROUP, LLC
Using brass drift (1), remove ring gear (2).

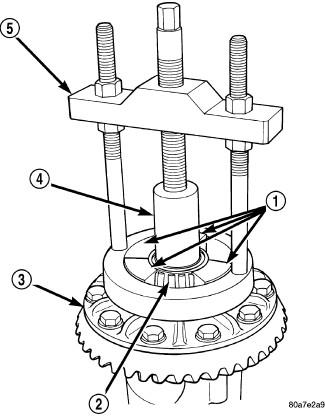

Fig 3: Bearing Removal
Courtesy of CHRYSLER GROUP, LLC
Remove bearings (2) from the differential case (3) with Puller/Press (special tool #C-293-PA, Puller, Press) (5), Adapters (special tool #C-293-37, Block Set, Puller) (1) and Puller Extension (special tool #SP-3289, Extension, Puller) (4).

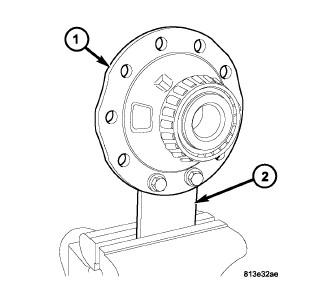

Fig 4: Differential Mounted
Courtesy of CHRYSLER GROUP, LLC
Install the differential to Mounting Plate (special tool #9630, Fixture, Diff. Case Holding) (2) to the differential (1) and then install the assembly into a bench vise.

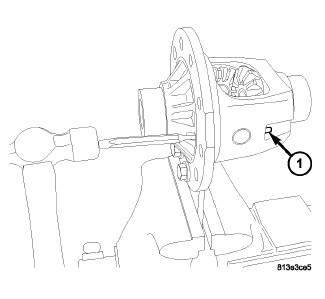

Fig 5: Roll Pin Removal
Courtesy of CHRYSLER GROUP, LLC
Drive out pinion shaft-to-case roll pin using hammer and suitable punch.

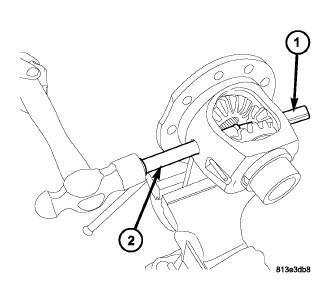

Fig 6: Removing Pinion Shaft
Courtesy of CHRYSLER GROUP, LLC
Using brass drift (2), drive out pinion shaft (1).

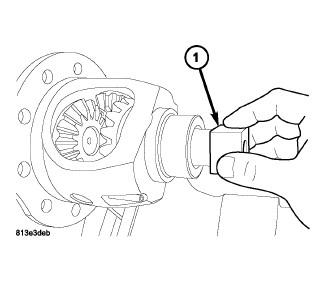

Fig 7: Installing Fixture
Courtesy of CHRYSLER GROUP, LLC
Install Fixture (special tool #9631, Fixture, Holding) (1) into differential side gear.

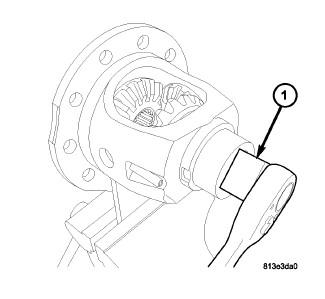

Fig 8: Rotate Differential Gears
Courtesy of CHRYSLER GROUP, LLC
Rotate Fixture (special tool #9631, Fixture, Holding) (1) to gain access to and remove pinion gears and thrust washers.

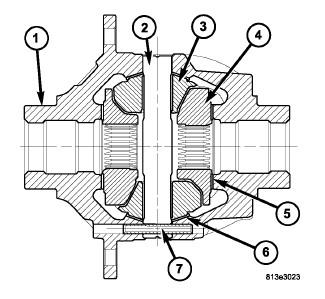

Fig 9: Side Gears & Thrust Washers
Courtesy of CHRYSLER GROUP, LLC
Remove differential side gears (4) and thrust washers (5).
