Pinion Depth Measurement

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

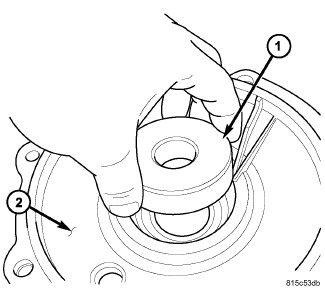

Fig 1: Arbor Disc

Courtesy of CHRYSLER GROUP, LLC

Install arbor disc (special tool #9681-4, Disc, Arbor) (1) into differential cover (2). Refer to Fig 1.

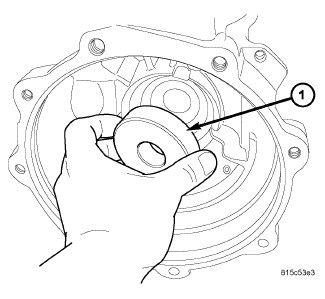

Fig 2: Arbor Disc
Courtesy of CHRYSLER GROUP, LLC
Install arbor disc (special tool #9681-5, Disc, Arbor) (1) into differential case. Refer to Fig 2.

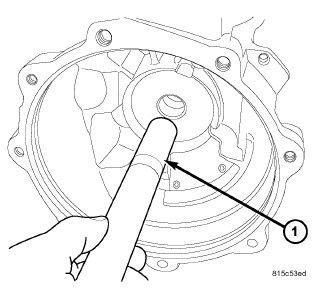

Fig 3: Arbor Bar
Courtesy of CHRYSLER GROUP, LLC
Install arbor bar (special tool #D-115-3, Arbor) (1) into arbor disc (special tool #9681-5, Disc, Arbor).

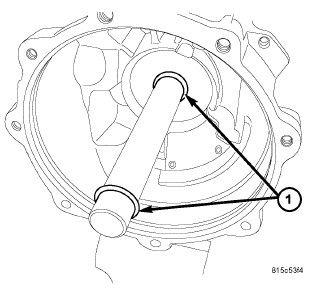

Fig 4: Space O-Rings
Courtesy of CHRYSLER GROUP, LLC
Install O-rings (1) on arbor bar (special tool #D-115-3, Arbor). Refer to Fig 4.

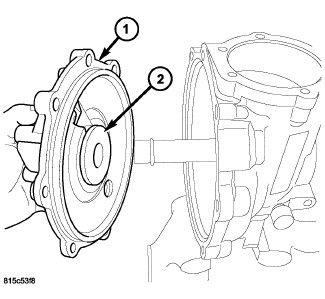

Fig 5: Install Cover To Housing
Courtesy of CHRYSLER GROUP, LLC
Install cover (1) to housing. Refer to Fig 5.
Install and torque cover-to-housing bolts to:
- M10x40 - 65 N.m (48 ft. lbs.)
- M8x25 - 34 N.m (25 ft. lbs.)

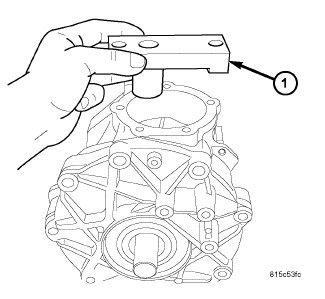

Fig 6: Plate
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Make sure gauge plate surfaces are clean to insure an accurate reading
Install gauge plate (special tool #9681-2, Plate, Gage) (1) to pinion opening. Refer to Fig 6.

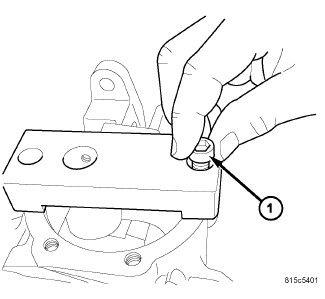

Fig 7: Plate-To-Housing Bolts
Courtesy of CHRYSLER GROUP, LLC
Install plate-to-housing bolts (1). Refer to Fig 7.

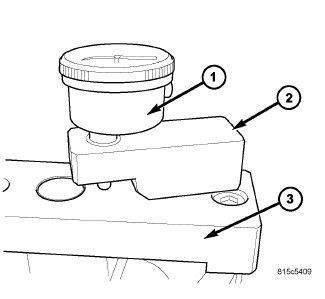

Fig 8: Scooter Block & Dial Indicator On Gauge Plate
Courtesy of CHRYSLER GROUP, LLC
Install Scooter Block (2) and dial Indicator (1) on gauge plate (special tool #9681-2, Plate, Gage) (3). Refer to Fig 8.

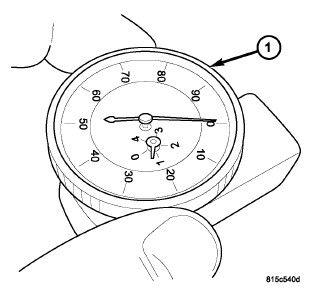

Fig 9: Zero Dial Indicator
Courtesy of CHRYSLER GROUP, LLC
Zero dial indicator (1). Refer to Fig 9.

Fig 10: Measure Gage Rod Protrusion
Courtesy of CHRYSLER GROUP, LLC
Take reading (1) with the dial indicator, measure gage rod protrusion. Refer to Fig 10.
Record gage rod protrusion reading on the dial indicator. The dial indicator reading represents the amount that this particular assembly deviates from the design height.
