Pinion Assembly Height Measurement

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

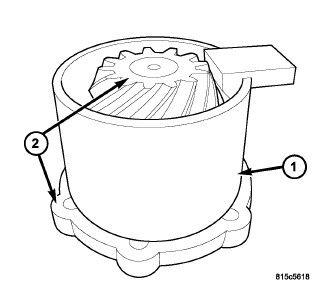

Fig 1: Measuring Sleeve
GC0094992Courtesy of CHRYSLER GROUP, LLC
  1. Install measuring sleeve (special tool #9681-1, Gauge, Pinion Height) (1) over pinion assembly (2). Refer to Fig 1.
    Fig 2: Checking Pinion Height Using Dial Indicator
    GC0081463Courtesy of CHRYSLER GROUP, LLC
  2. Install Scooter Block (2) and dial Indicator on (1) measuring sleeve (special tool #9681-1, Gauge, Pinion Height) (3). Refer to Fig 2.
  3. Record reading on the dial indicator. The dial indicator reading represents the amount that this particular assembly deviates from the design height.
