Section 76 (Propeller Shaft): Installation: Rear

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

Propeller shaft installation is a two-man operation. Never allow propeller shaft to hang from the center bearing, or while only connected to the transmission or rear axle flanges. A helper is required. If a propeller shaft section is hung unsupported, damage may occur to the shaft, coupler, and/or center bearing from over-angulation. This may result in driveline vibrations and/or component failure.

COUPLER/DAMPER SERVICE

Fig 1: Removing/Installing Damper
GC0081126Courtesy of CHRYSLER GROUP, LLC
  1. If coupler and/or damper were removed, align index marks and reinstall. Make sure protruding sleeve (2) is properly seated into propshaft or damper counterbores.
  2. Install three bolts with washers and nuts and torque to 58 N.m (43 ft. lbs.) torque.
Fig 2: Propeller Shaft AT Rear Axle Flange
GC0081124Courtesy of CHRYSLER GROUP, LLC
  1. Obtain helper and install propeller shaft into position at axle. Align index marks placed upon removal. Install propeller shaft rear coupler-to-axle flange bolt/nuts by hand. Do not torque at this time.
    Fig 3: Propeller Shaft AT Transmission
    GC0081123Courtesy of CHRYSLER GROUP, LLC
    1 - TRANSMISSION REAR FLANGE
    2 - FRONT COUPLER
  2. Install propeller shaft into position at transmission flange. Align index marks placed upon removal. Install propeller shaft front coupler-to-transmission flange bolt/nuts by hand. Do not torque at this time.
    Fig 4: Center Bearing-To-Body
    GC0081125Courtesy of CHRYSLER GROUP, LLC
    1 - CENTER BEARING
    2 - CENTER BEARING MOUNT
    3 - PROPELLER SHAFT
  3. Loosely install center bearing-to-body bolts. Do not torque at this time.
    Fig 5: Propeller Shaft AT Transmission
    GC0081123Courtesy of CHRYSLER GROUP, LLC
    1 - TRANSMISSION REAR FLANGE
    2 - FRONT COUPLER
  4. Tighten the bolts to 98 N.m (72 ft. lbs.) for non SRT8 applications  .
  5. Tighten the bolts to 156 N.m (115 ft. lbs.) for SRT8 applications  .
    Fig 6: Propeller Shaft AT Rear Axle Flange
    GC0081124Courtesy of CHRYSLER GROUP, LLC
  6. Tighten the bolts to 98 N.m (72 ft. lbs.) for non SRT8 applications  .
  7. Tighten the bolts to 156 N.m (115 ft. lbs.) for SRT8 applications  .

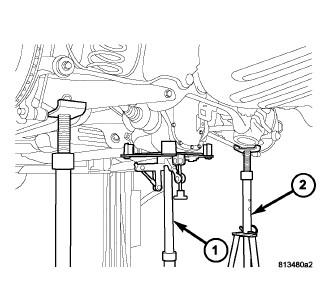

    Fig 7: Supporting Rear Axle With Jack Stands Transmission Jack
    GC0081127Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Note: It is necessary to compress rear suspension to ride height before securing center bearing to body. Failure to compress suspension may result in objectionable noise and premature bearing wear.

  8. Compress rear suspension with suitable jack stands (2).
    Fig 8: Center Bearing-To-Body
    GC0081125Courtesy of CHRYSLER GROUP, LLC
    1 - CENTER BEARING
    2 - CENTER BEARING MOUNT
    3 - PROPELLER SHAFT
  9. Torque center bearing-to-body bolts to 27 N.m (20 ft. lbs.).
    Fig 9: Heat Shield
    GC0081122Courtesy of CHRYSLER GROUP, LLC
  10. Install heat shield (1).
    Fig 10: Identifying Clamps & Rear Exhaust System
    GC0081121Courtesy of CHRYSLER GROUP, LLC
  11. Install rear exhaust system (2)
    Fig 11: Crossmember
    GC0081120Courtesy of CHRYSLER GROUP, LLC
  12. Install crossmember (1).
