Differential/Ring Gear Assembly

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
GC0081432Courtesy of CHRYSLER GROUP, LLC
  1. Install pinion shaft (1), pinion gears (3) and thrust washers (2).
    GC0081431Courtesy of CHRYSLER GROUP, LLC
  2. Using suitable punch, install new  roll pin and install flush to differential case (1).
    GC0081430Courtesy of CHRYSLER GROUP, LLC
  3. Install differential side gears (2) and thrust washers (1). Rotate into position.

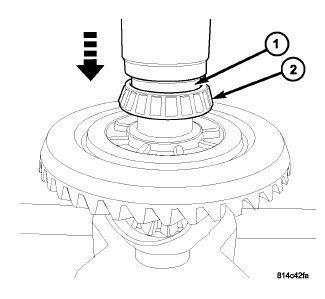

    GC0094988Courtesy of CHRYSLER GROUP, LLC
  4. Using Installer (special tool #9666, Installer, Bearing) (1), install new  differential side bearing (ring gear side).

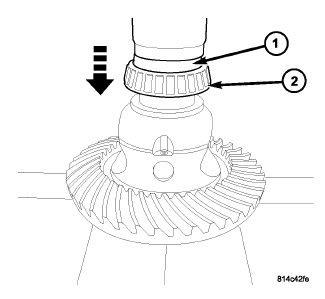

    GC0081440Courtesy of CHRYSLER GROUP, LLC
  5. Using Installer (special tool #9665, Installer, Bearing) (1), install new  differential side bearing (opposite side).
