Outlet, Power, Universal Serial Bus: Removal
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Take the proper precautions to protect the floor console rear trim panel from cosmetic damage while performing this procedure.
- Disconnect the negative battery cable.

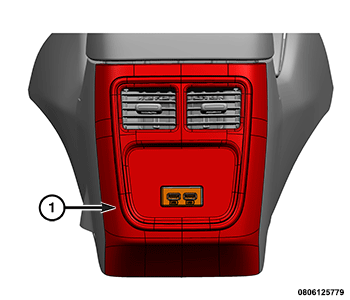

- Remove the floor console end cap (1) from the back of the floor console using Trim Stick (special tool #C-4755, Trim Stick) or equivalent.

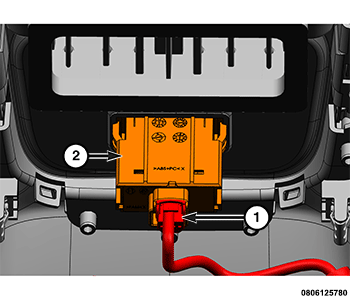

- Disconnect the wire harness connector (1) from the power USB outlet (2).

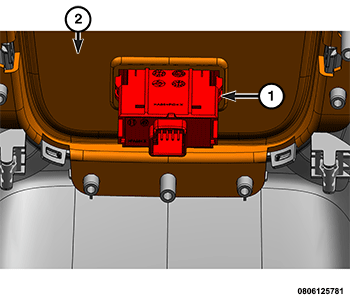

- Release the power USB outlet retaining tabs (1) and remove the outlet from floor console rear trim panel (2).
