Center, Power Distribution (PDC): Description
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
The majority of electrical system fuses and relays are housed in the two Power Distribution Centers (PDC). The front PDC is located in the engine compartment. The rear PDC is located next to the battery in the rear of the vehicle. Both of the PDCs are replaced only as part of the body wiring harness.
For fuse description and layout. Refer to FUSE - RELAY LOCATIONS AND TYPES, SPECIFICATIONS .

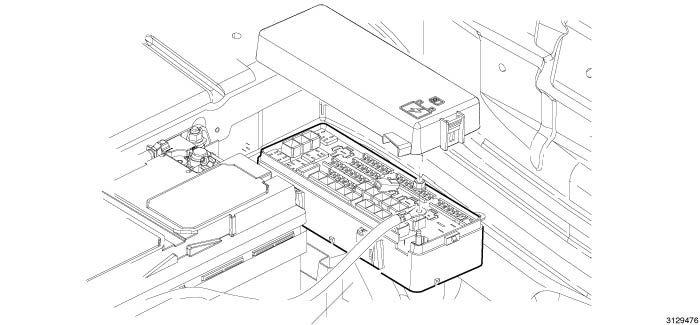

Rear PDC is located in the truck next to the battery.

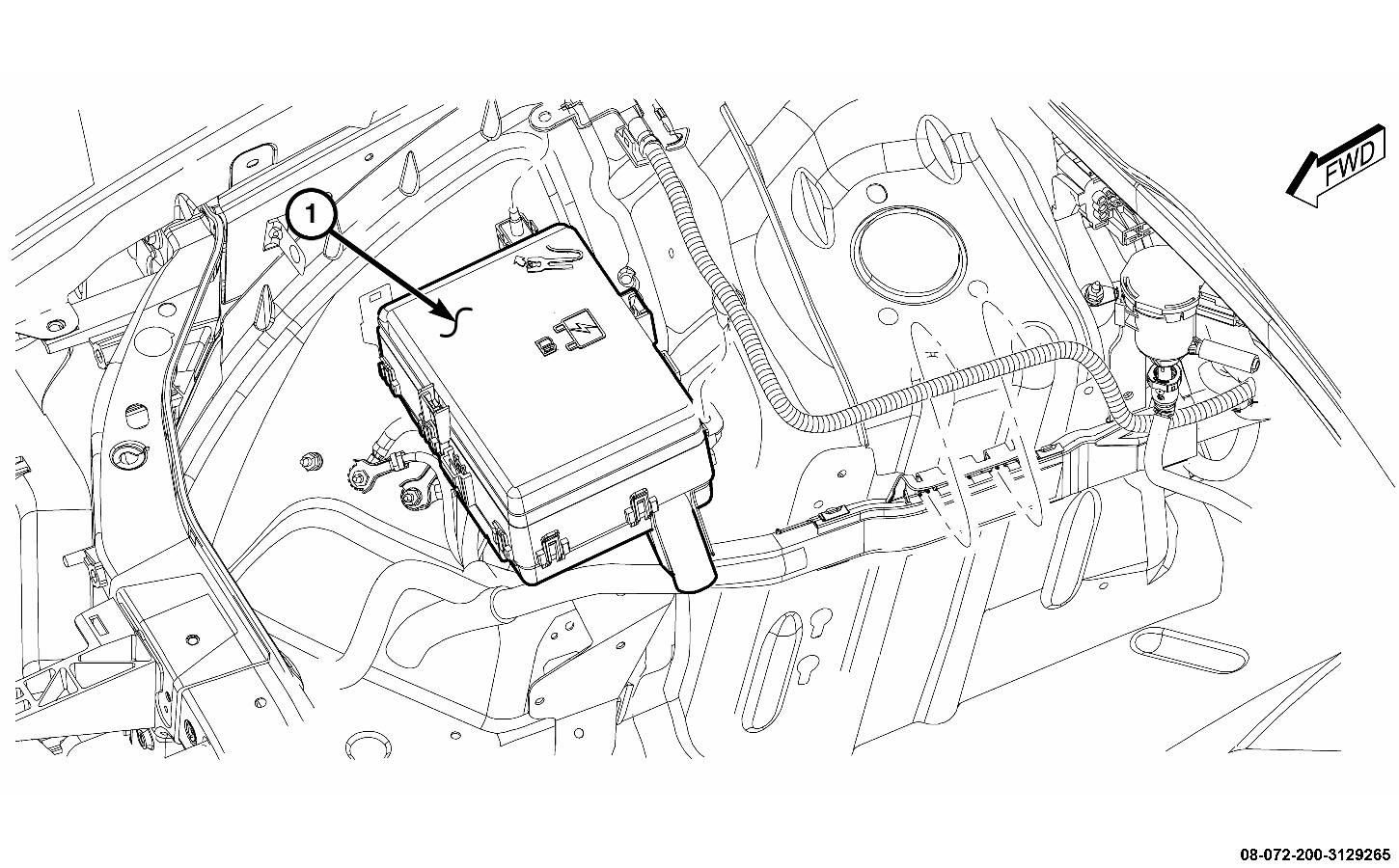

The Front PDC (1) is located in the engine compartment on the passenger side fender.
