Section 743 (Front Half Shaft): Installation

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

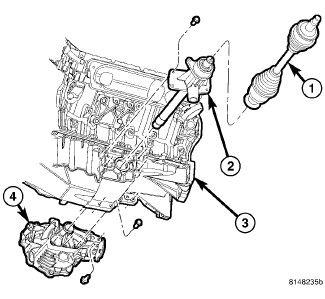

GC0081406Courtesy of CHRYSLER GROUP, LLC
  1. Install the left halfshaft assembly (1).

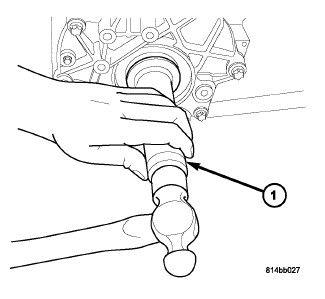

    GC0081407Courtesy of CHRYSLER GROUP, LLC
  2. Using the Seal Installer (special tool #C-4193A, Installer, Seal) (1), install a NEW  axle seal.

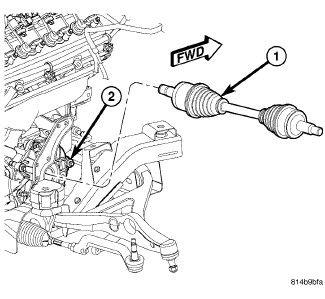

    GC0081405Courtesy of CHRYSLER GROUP, LLC
  3. Install the right halfshaft assembly (1).

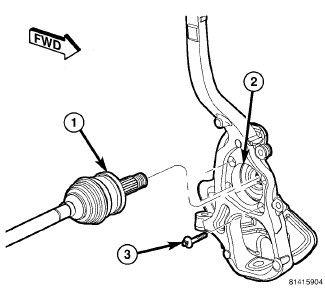

    GC0079685Courtesy of CHRYSLER GROUP, LLC
  4. Install the halfshaft (1) into hub/bearing assembly (2).

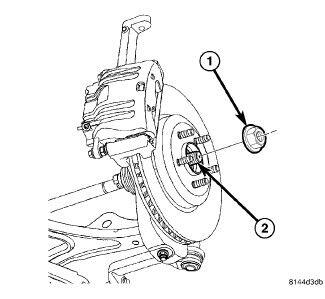

    GC0207775Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Always install a new hub nut. The original hub nut is one-time use only and should be discarded when removed.

  5. Loosely install the halfshaft hub nut (1), and do not tighten at this time.

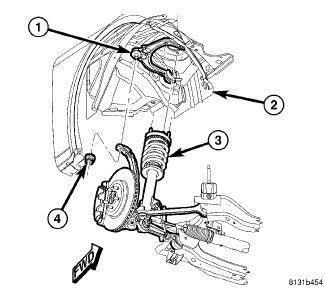

    GC0079691Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    It is important to tighten nut as described in following step to avoid damaging ball stud joint.

  6. Place upper ball joint stud (1) through hole in top of knuckle and install nut (4). Tighten nut by holding ball joint stud with a hex wrench while turning nut with a wrench. Tighten nut using crowfoot wrench on torque wrench to 47 N.m + 90° turn (35 ft. lbs. + 90° turn) torque.
    NOTE:

    Inspect brake pads before installation. Refer to PADS, BRAKE, INSPECTION .

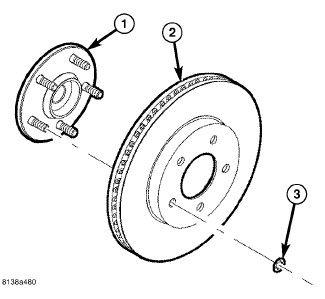

    GC0079735Courtesy of CHRYSLER GROUP, LLC
  7. Clean the hub face (1) to remove any dirt or corrosion where the rotor mounts.
  8. Install the brake rotor (2) over the studs on the hub and bearing.

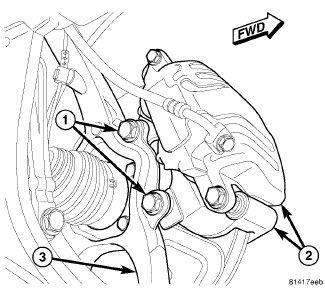

    GC0079857Courtesy of CHRYSLER GROUP, LLC
  9. Install the disc brake caliper and adapter assembly (2) over the brake rotor.
  10. Install the mounting bolts (1) securing caliper adapter (2) to knuckle (3). Tighten the bolts to the proper specification. Refer to TORQUE SPECIFICATIONS .

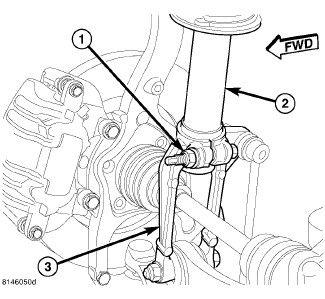

    GC0079715Courtesy of CHRYSLER GROUP, LLC
  11. Pull lower end of shock assembly outward, then slide clevis bracket (3) onto lower end. Slide clevis bracket onto shock assembly until bracket contacts collar on shock housing (2).
  12. Install pinch bolt and nut (1) fastening clevis bracket (3) to bottom of shock assembly (2). Install pinch bolt from rear. Do not tighten at this time.
    GC0079707Courtesy of CHRYSLER GROUP, LLC
  13. Slide clevis bracket (2) over bushing mounted in lower control arm (7).
  14. Install bolt (1) and nut (3) attaching shock clevis bracket (2) to lower control arm (7). Do not tighten at this time.
    GC0079715Courtesy of CHRYSLER GROUP, LLC
  15. Tighten pinch bolt (1) attaching clevis bracket to shock assembly and tighten to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .

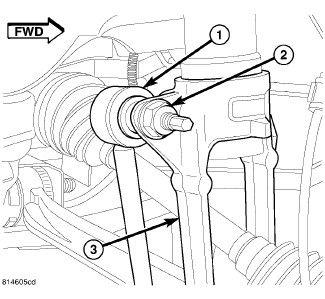

    GC0079714Courtesy of CHRYSLER GROUP, LLC
  16. Slide stabilizer bar link ball joint stem into clevis bracket. Install nut (2) fastening link to clevis bracket (3). Tighten nut by holding ball joint stud while turning nut. Tighten nut using crowfoot wrench on torque wrench to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .

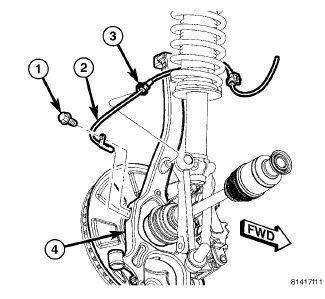

    GC0094944Courtesy of CHRYSLER GROUP, LLC
  17. Attach wheel speed sensor cable routing clip (3) at knuckle (4).
    GC0207775Courtesy of CHRYSLER GROUP, LLC
  18. Install hub nut (1) on end of axle halfshaft (2). While an assistant applies the brakes to keep the hub from turning, tighten hub nut to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
  19. Install the tire and wheel assembly. Refer to INSTALLATION .
  20. Remove the support and lower the vehicle.

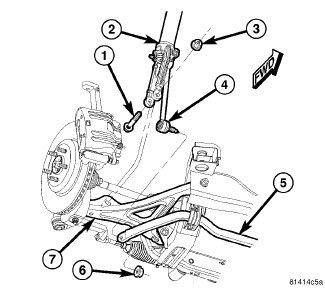

    GC0079707Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    When tightening lower shock clevis mounting bolt, do not attempt rotating bolt. Bolt shaft is serrated. Turn nut only.

  21. Tighten lower shock clevis bracket bolt nut (3) to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
