Module, Radio Frequency (RF Hub): Removal: Removal

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

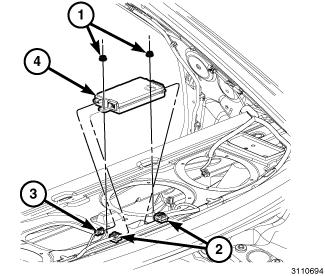

Fig 1: RF Hub Retainers, Connectors & Remote Start Antenna
GC0144688Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Remove the rear shelf cover. Refer to PANEL, REAR SHELF, REMOVAL .
  3. Remove the RF Hub retainers (1).
  4. Disconnect the electrical connectors (2).
  5. If equipped, disconnect the remote start antenna (3).
  6. Remove the RF Hub (4) from the vehicle.
